Model:ZT-IE6050-4GT2GS

4x10/100/1000Base TX~2x10/100/1000Base FX Unmanaged Industrial Gigabit Ethernet Switch

4 gigabit electrical ports+2 gigabit FX optical ports industrial grade Ethernet switch, supporting 4x10/100/1000Base-T (X) electrical ports and 2x1000Base-X optical ports. The product complies with FCC, CE, and RoHS standards. ZT-IE6050-4GT2GS has a working temperature of -40 ℃ to 75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level shell and LED indicator light make the ZT-IE6050-4GT2GS a plug and play industrial device, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in industrial scenarios such as comprehensive energy, smart transportation, smart factories, smart cities, smart mines, and Ethernet access.

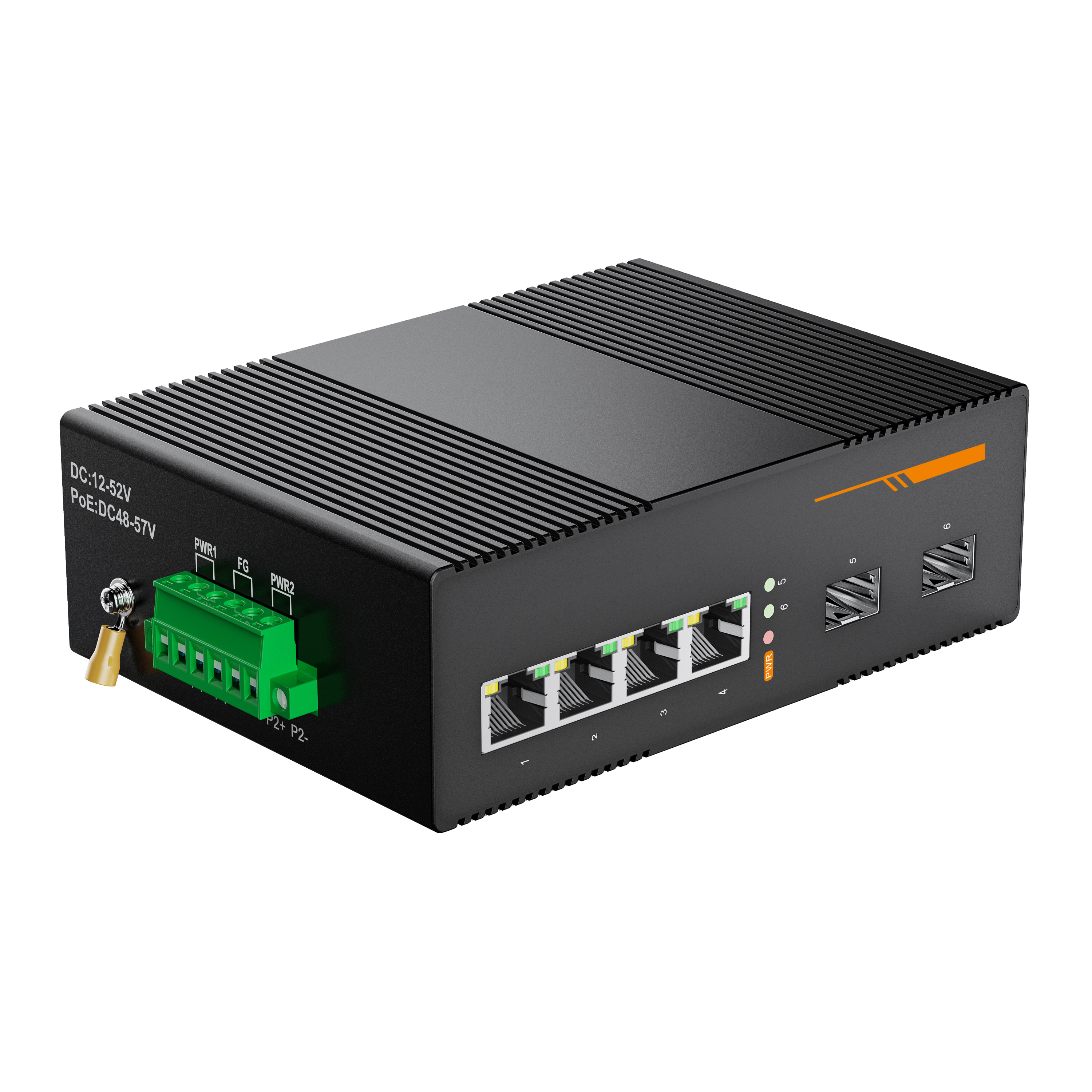

ZT-IE6050-4GT2GS(图1)

Adopting high-quality optoelectronic integrated modules to provide good optical and electrical characteristics
Ensure reliable data transmission and long working life
Supports full duplex or half duplex modes with automatic negotiation capability
The network interface supports fully automatic cross recognition
Built in storage and forwarding mechanism, supporting multiple protocols
Green and energy-saving, using low-power CPUs
Working power supply: DC 12V-52V provides reverse protection and 4A overcurrent protection
Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ s)
Meets industrial level operational standards, with an average time between failures of over 300000 Hours

Standards and Protocols	IEEE802.3-10Base-T IEEE802.3u-100Base-Tx IEEE802.3ab-1000Base-T(x) IEEE802.3x - Flow Control
interface	Electric port: 4x10/100/1000Base-T (X), RJ45, automatic detection Optical port: 2x1000Base-F (X), Full/half duplex mode, MDI/MDI-X adaptive
LEDpilot lamp	Power indicator light：PWR
Exchange Properties	Transmission method: storage and forwarding Backplane bandwidth: 12G MAC address: 8K Application level: Level 2 Power consumption:<3W Exchange latency:<3us Cache: 1Kbit
power supply	Input voltage: DC12-52V Supports dual power redundancy Supports reverse protection Access terminal: Phoenix terminal
consumption	Empty: 1W@24VDC (Non PoE) the full load: 3W@24VDC (Non PoE)
Work environment	Working temperature: -40 ℃~75 ℃ Storage temperature: -40 ℃~85 ℃ Relative humidity: 5%~95% (without condensation)

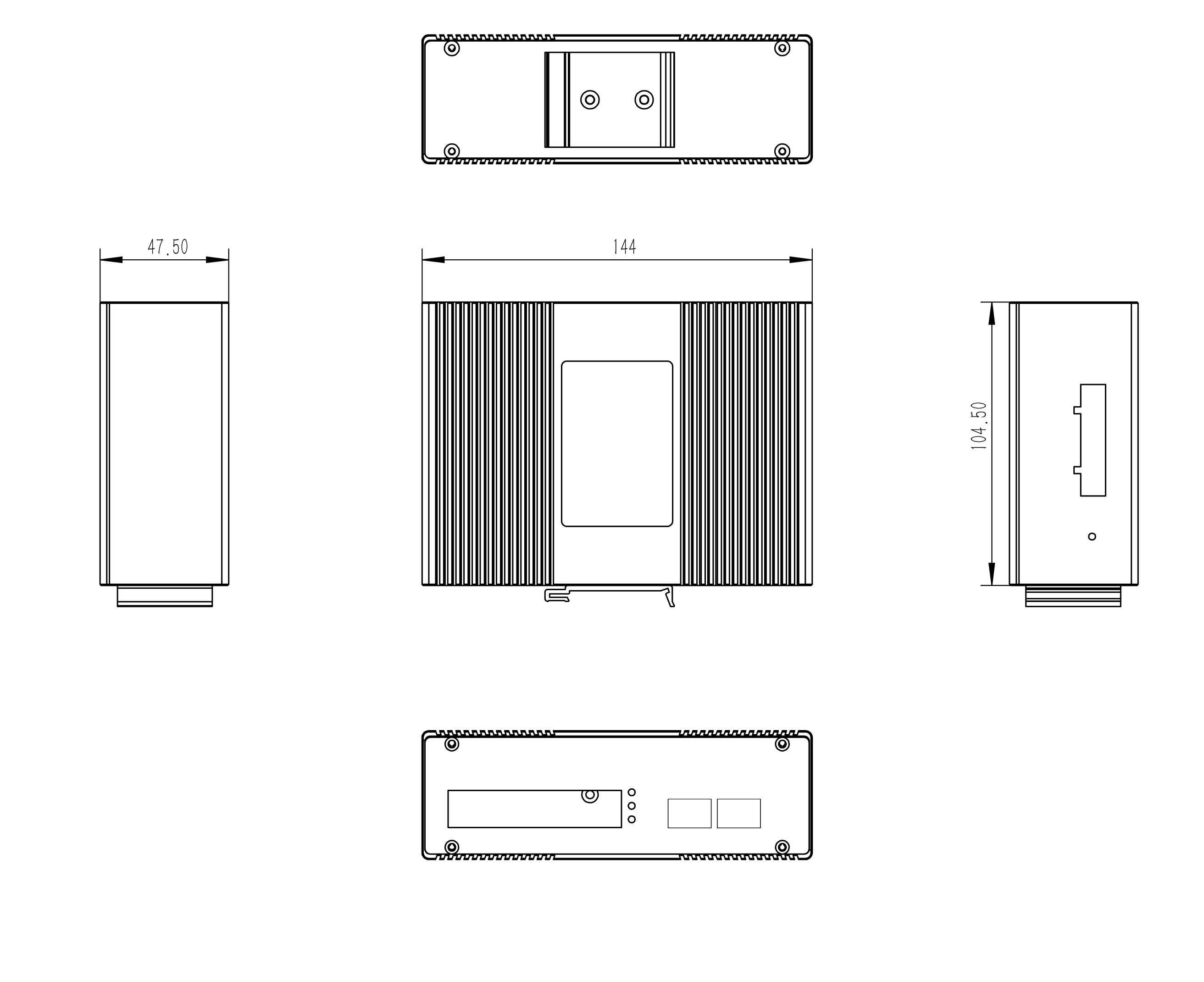

Mechanical structure	Housing: IP40 protection level, aluminum alloy housing Installation: DIN rail mounted Size: (length × wide × Height) 143 x 101 x 44mm Product weight: 0.64Kg
Industry standards	IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4 ●Air discharge: ± 15kV ● Contact discharge: ± 8kV IEC 61000-4-5 (Surge, Surge Immunity), Level 4 ●Power supply: common mode ± 4kV, differential mode ± 2kV ●Ethernet interface: ± 4kV Impact: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE、FCC、RoHS、ISO9001、Detected by the Ministry of Public Security
Warranty	5Year
