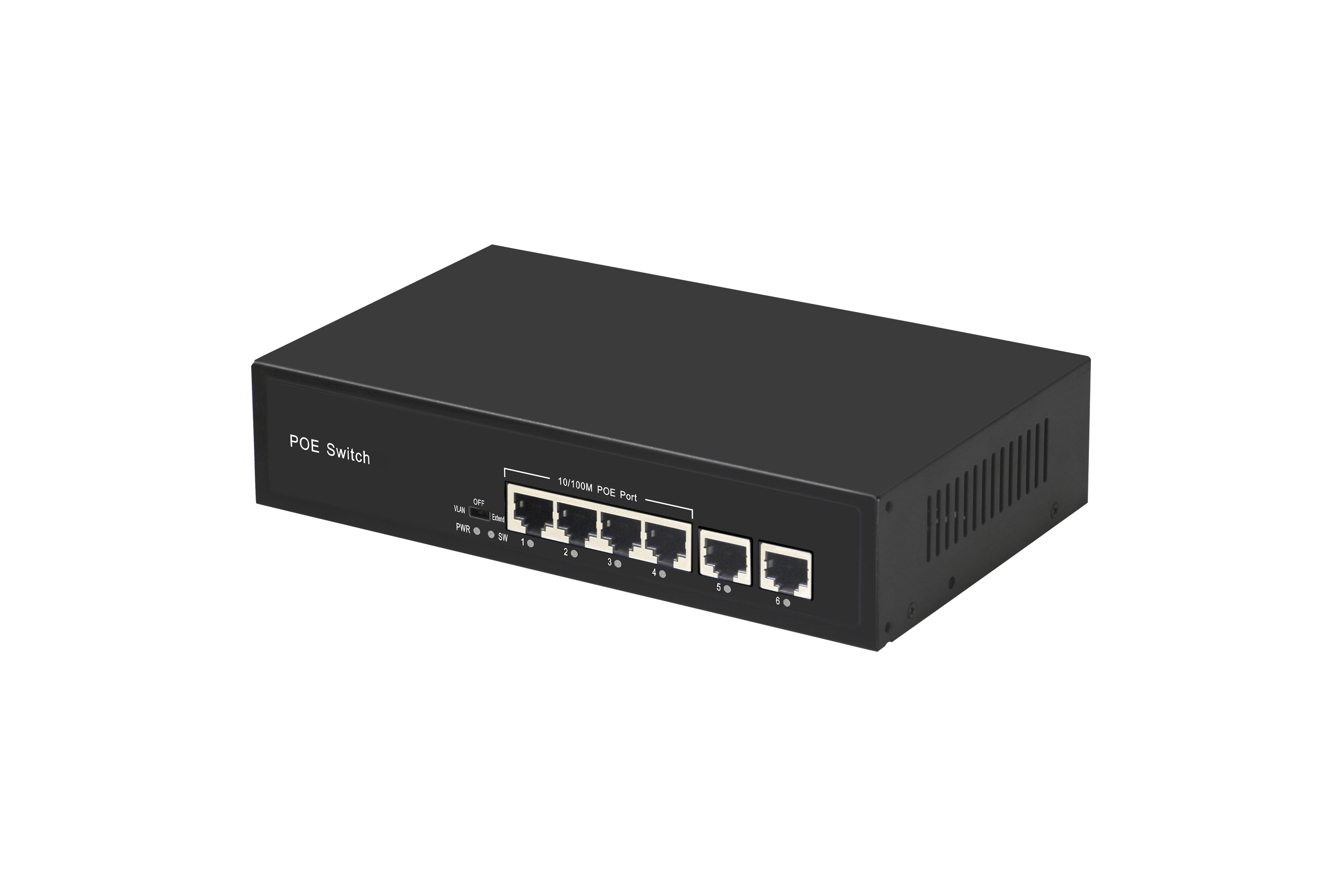

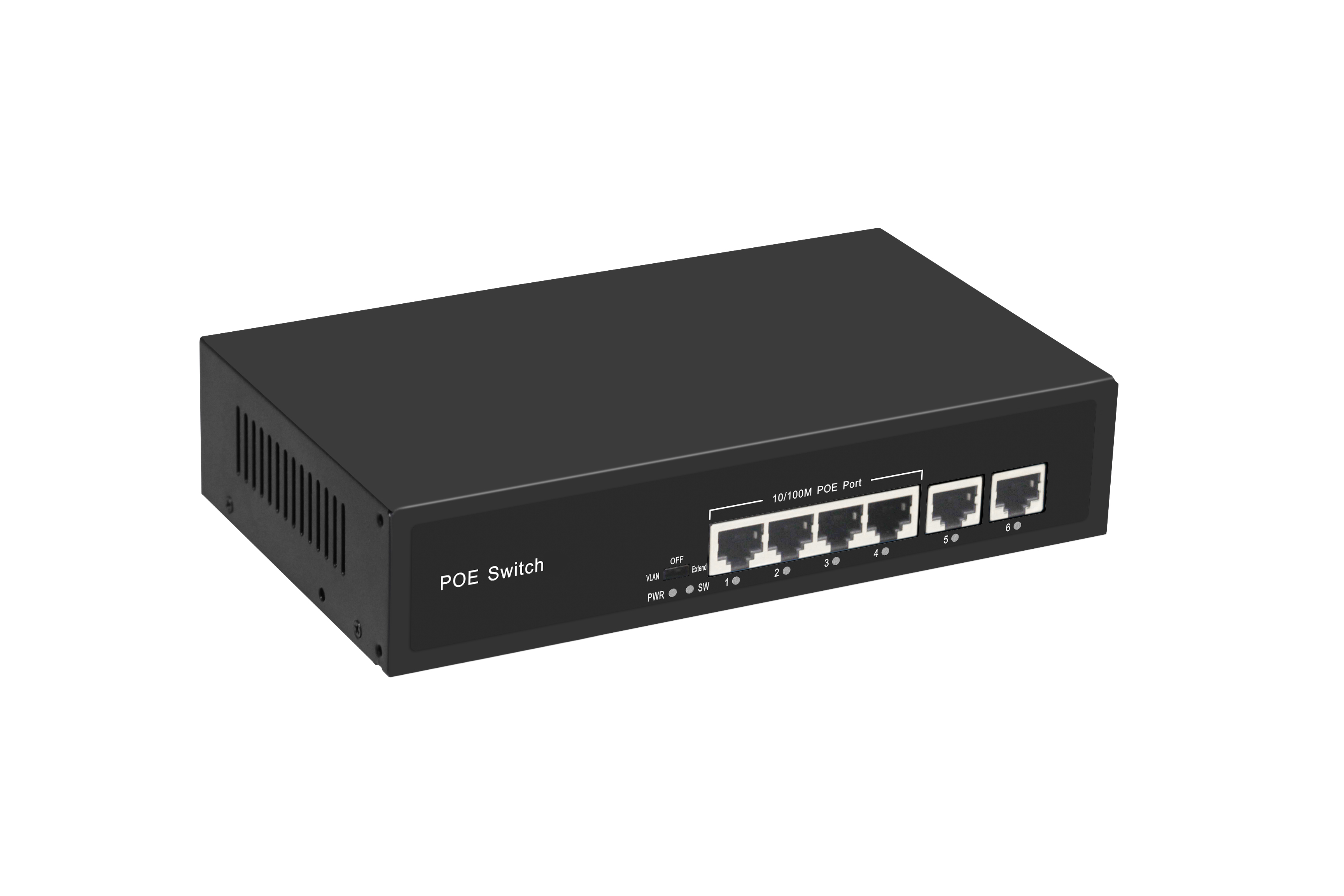

Model:ZT-IE6000S-4TP2TX

100M 6-port unmanaged commercial grade POE switch

  • 4 100Mbps downlink PoE ports+2 100Mbps uplink ports

  • IEEE 802.3af/at international standard, with a total power of 55

  • Supports three working modes: VLAN, OFF, and Extend

  • No configuration required, plug and play, easy to install and use

ZT-IE6000S-4TP2TX(图1)

Introduction Parameter Size Download

The 6-port 100M Ethernet power switch (PoE Switch) uses high-quality high-speed network IC and the most stable PoE chip. The PoE Port supports 802.3af and 802.3at standards, and this series of PoE switches can be 10/100M Ethernet. The network provides seamless connectivity, and the PoE power port can automatically detect and supply power to powered devices that comply with the IEEE802.3af or IEEE802.3at standards. Non PoE devices intelligently cannot detect power and only send data. PoE refers to power over Ethernet, which transmits data signals to some IP based terminals (such as IP phones, wireless access APs, webcams, etc.), but also provides DC power for the equipment. Technically, these devices that receive direct current are called power supply devices. It has simple and convenient installation and maintenance methods, as well as rich business functions, to help users build a safe and reliable high-performance network. Mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, residential broadband, etc; It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, and schools.

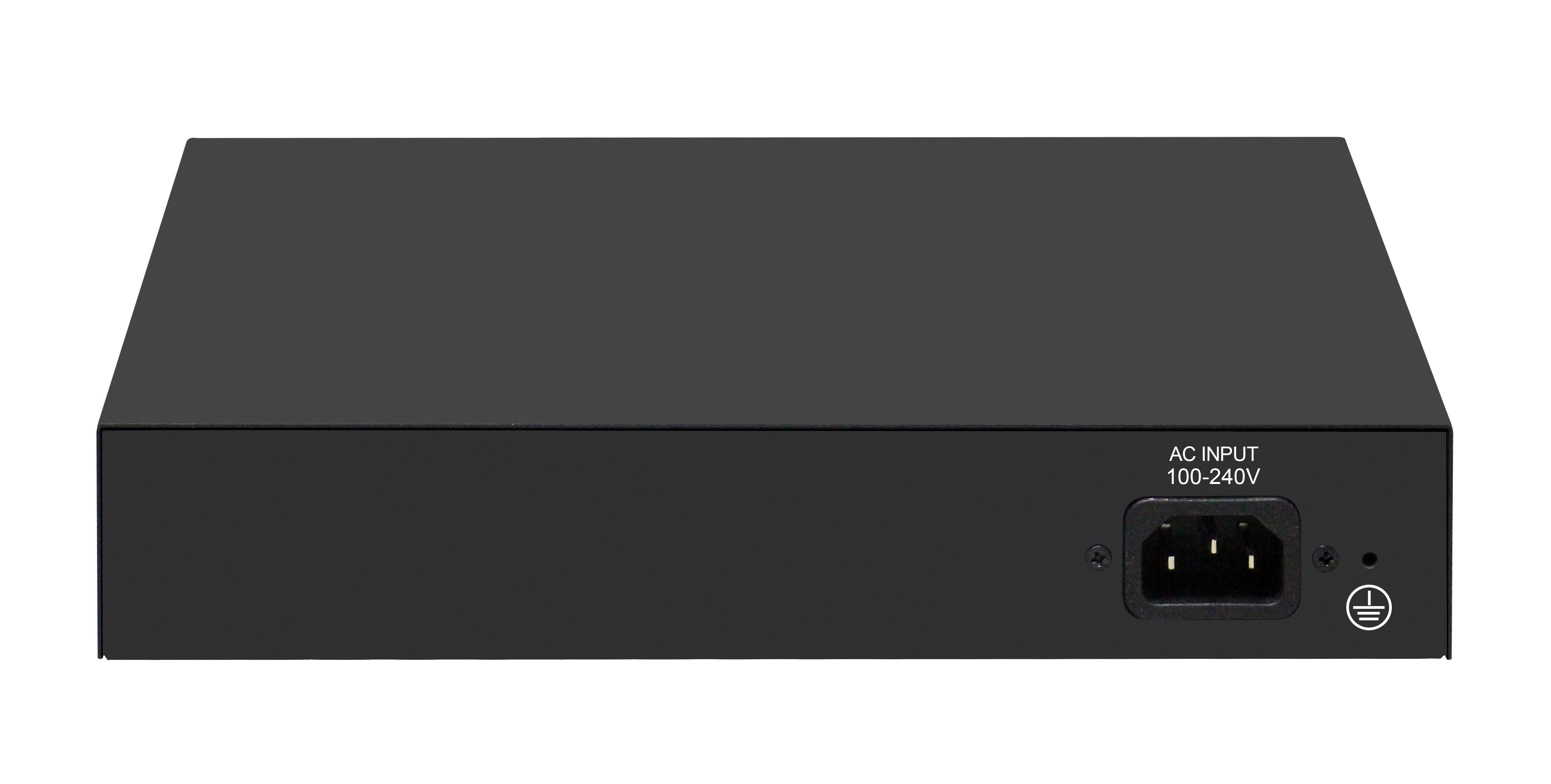

power supplyAC INPUT (100-240V)
Ethernet

4 100Mbps PoE network ports

Two 100Mbps uplink network ports

performance

Backplane bandwidth: 1.2Gbps

Packet forwarding rate: 0.8928Mpps

Package cache: 448K

MAC address table: 448K

Giant frame: 1K

Forwarding mode: store and forward

MTBF: 100000 hours

network protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3x (Flow Control)

PoE protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)

Industry standardsEMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
network media

110Base-T: Cat3, 4, 5 or above UTP/STP (≤ 100m)

100Base TX: Cat5 or above UTP/STP (≤ 100m)

1000Base TX: Cat5 or above UTP/STP (≤ 100m)

safety certificationCE、FCC、RoHS
work environment

Working temperature: -20~50 ° C

Storage temperature: -40~85 ° C

Working humidity: 10%~90%, non condensing

Storage humidity: 5%~90%, non condensing

Working height: up to 10000 inches

Storage height: up to 10000 inches

pilot lampPWR (power indicator), SW (dial light), 1-6 green light (link&data)
Dip switch

VLAN: Port isolation mode, 1-4 ports cannot communicate with each other and can only communicate with the UP link port

Extend: Link extension mode, in which the PoE power supply and data transmission distance of the switch can be extended to 250 meters, and the transmission rate can be increased to 10M;

structure size

Product size: 200 * 120 * 45mm

Packaging size: 245 * 190 * 60mm

Net weight of product: 0.6KG

Product gross weight: 0.9KG

Packing information

Outer box size: 505 * 320 * 400mm

Packing quantity: 20 units

Packing weight: 19KG

supply voltage

Input voltage: AC 100-240 V

Power supply: 52V1.05A

packing list1 switch, 1 power cord, 1 manual and 1 certificate of conformity
