ZT-IE6000S-24TP2GT1GS_Shenzhen Weixun Zetong Technology Co., Ltd

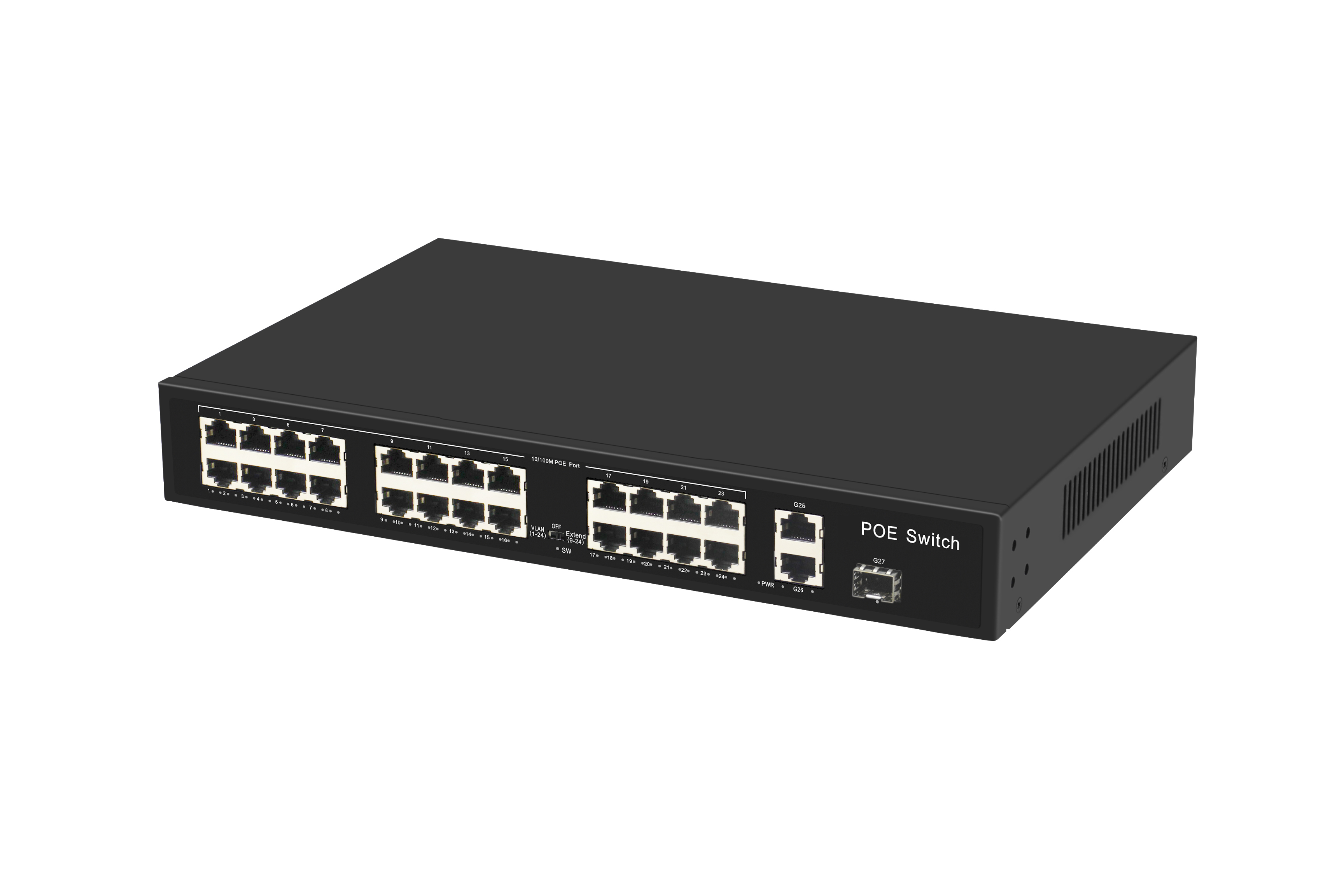

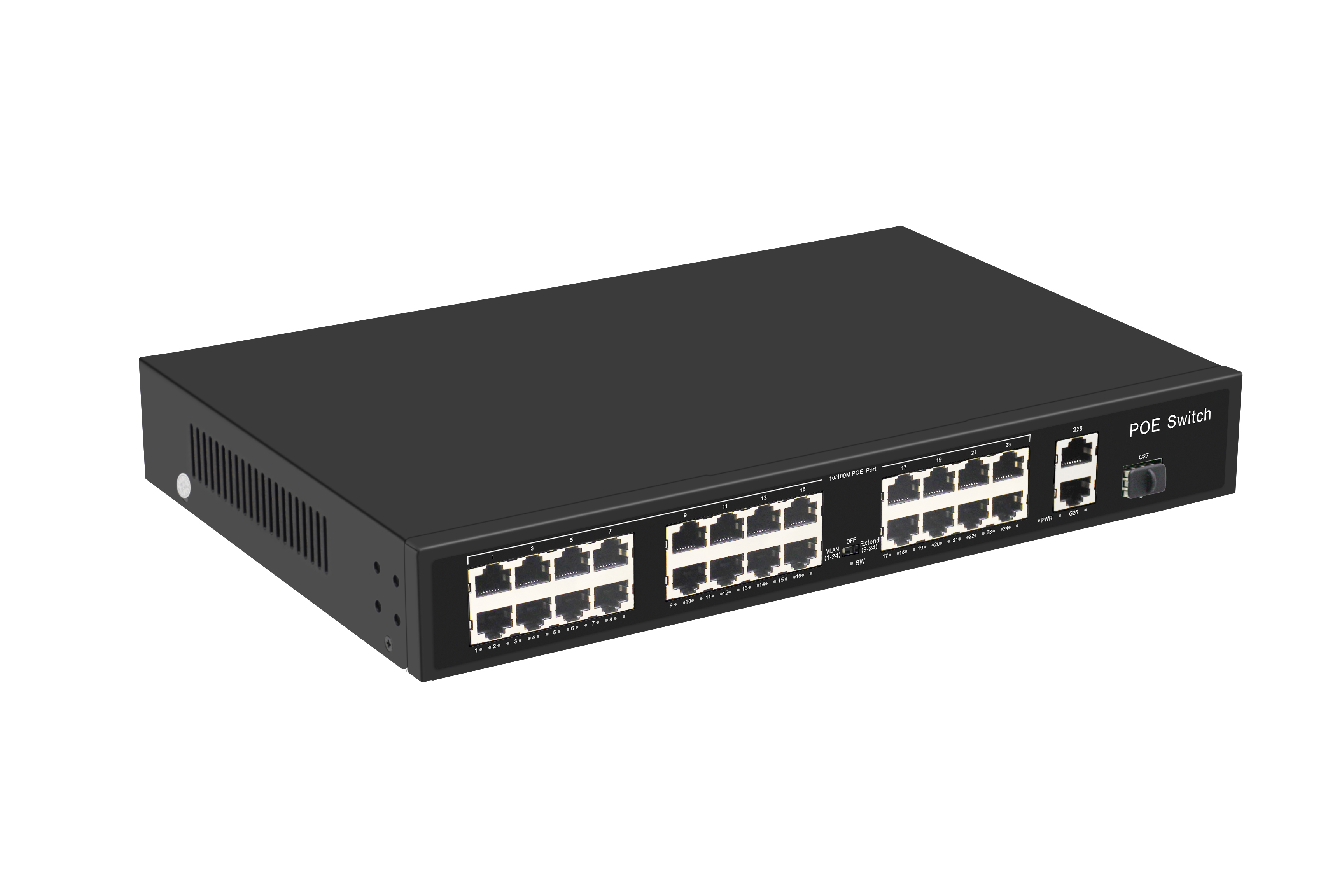

27 port 100/gigabit PoE switch, using high-quality and high-speed network IC and the most stable POE chip. The POE port meets the 802.3af or 802.3at standards. This series of POE switches can provide seamless connection for 10/100M Ethernet, and the POE power supply port can automatically detect and supply power to powered devices that meet the IEEE802.3af or IEEE802.3at standards. Non POE devices do not provide power for intelligent detection, only transmit data.

POE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.

With simple and convenient installation and maintenance methods and rich business features, it helps users create a safe and reliable high-performance network. Mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, schools, etc.

warranty

product name	27 Port 100 Gigabit Unmanaged PoE Switch
Model	ZT-IE6000S-24TP2GT1GS
Port Definition	24 Gigabit POE ports+2 Gigabit Ethernet ports+1 Gigabit optical port
performance	Mean time between failures: 100000 hours Backplane bandwidth: 10.8Gbps Packet forwarding rate: 6.844Mpps MAC address table: 2K Package cache: 1.5Mb Forwarding mode: store and forward
network protocol	IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z
POE parameters	PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive POE port output voltage: DC 52V POE power supply core: 1/2+; 3/6-
Dialing function	Vlan: Port isolation mode, in which the POE ports (1-16 ports) of the switch cannot communicate with each other and can only communicate with the UP link port, which helps prevent broadcast storms and improve network stability; OFF: Normal mode, all interfaces can communicate with each other, with a transmission distance of less than 100 meters and an adaptive transmission rate of 10M/100M; Extend: Link extension mode, in which the POE power supply and data transmission distance of the switch can be extended to 250 meters, and the transmission rate can be increased to 10M;
Network transmission medium	10Base-T：Cat6 or above UTP/STP(≤250M) 100Base-TX Cat5 UTP/STP(≤100M) 1000Base-TX： Cat5 UTP(≤100 M)
Fiber optic indicators	multimode：850nm，1310nm Distance：550m/2Km Single mode fiber：1310nm，1550nm Distance：20/40/60/80/100/120Km

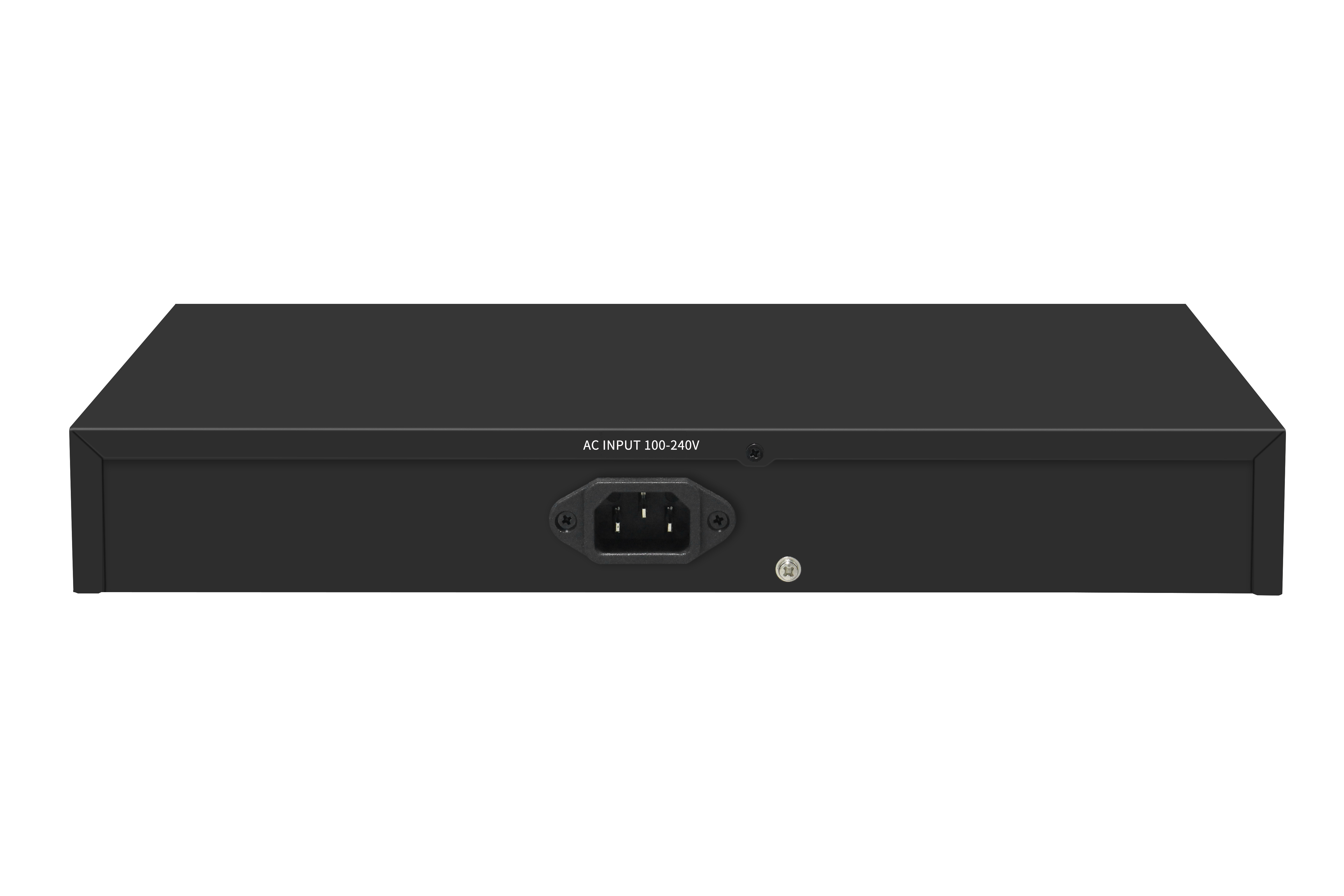

supply voltage	Voltage input: AC 100-240V Power：52V2.3A total power：120W
LED indicator light	PWR	Always on: The device is powered on
	(Power indicator light)	Not on: The device is not powered on
	SW	Not lit ：OFF
	(Dial light)	Light ：VLAN
		Slow flashing ：Extend
		Always on: Link connection is normal
	(Link connection light)	Flashing: Data transmission
		Not lit: Link not working
work environment	Working temperature: -20~50 ° C Storage temperature: -40~85 ° C Working humidity: maximum relative humidity of 90%, non condensing Storage humidity: maximum relative humidity of 95%, non condensing Working height: maximum 10000 feet (3000 meters) Storage height: up to 10000 feet (3000 meters)
Physical specifications	Product size (L * W * H): 319 * 207 * 45mm Packaging size (L * W * H): 370 * 270 * 85mm Product weight: 1.9Kg Packaging weight: 2.4Kg
packing list	1. Switch: 1 set 2. Power cord: 1 piece 3. Instructions: 1PCS 4. Warranty card and certificate: 1PCS 5. 1U ear hook: 1 pair
Packing information	Outer box size: 440 * 285 * 390mm Packing quantity: 5 units Packing weight: 13KG
safety certification	CE、FCC、CCC、RoHS
2 years

Model:ZT-IE6000S-24TP2GT1GS
