ZT-IE6000S-8GP2GS_Shenzhen Weixun Zetong Technology Co., Ltd

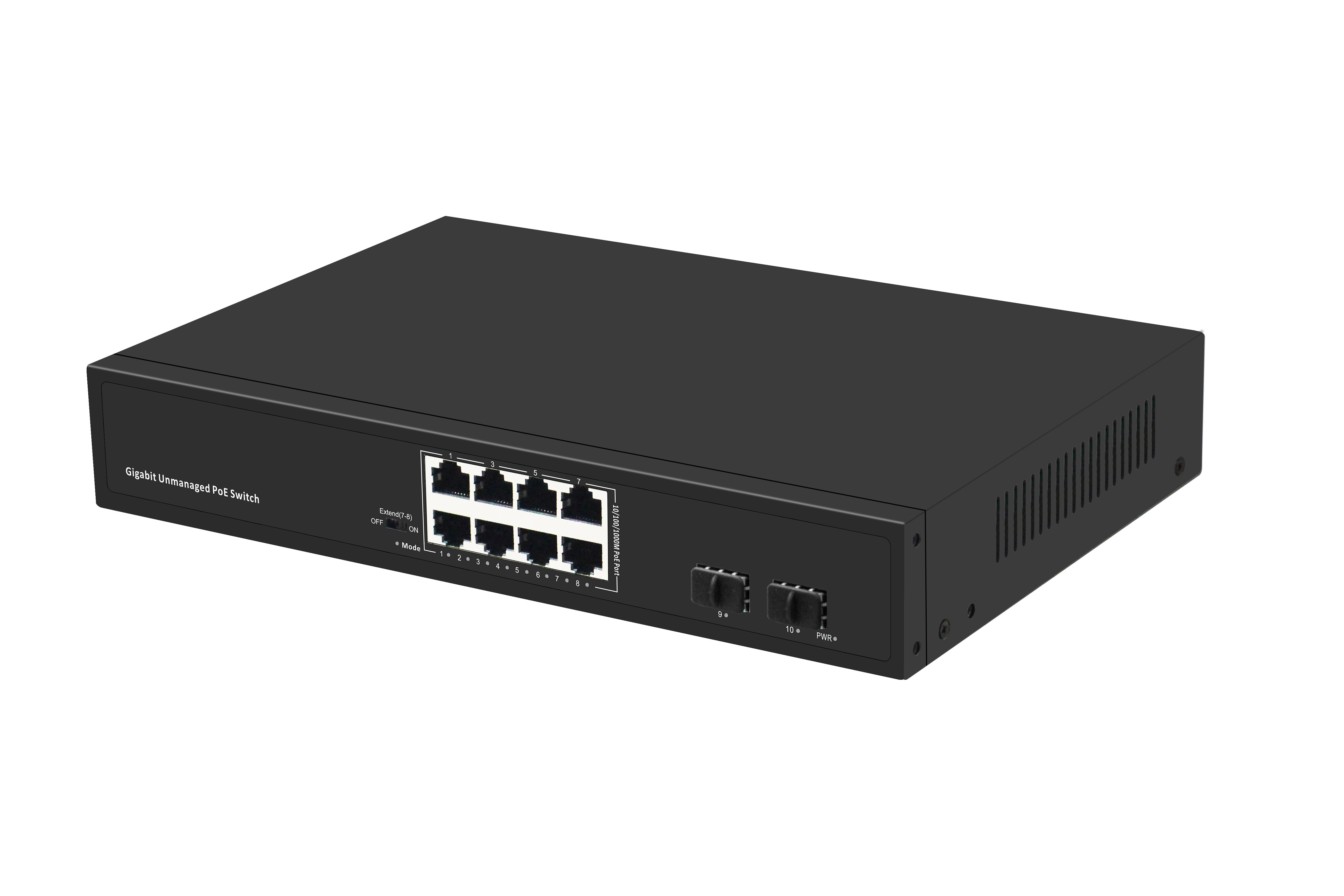

The 10 port full gigabit power over Ethernet switch (POE switch) uses high-quality high-speed network IC and the most stable POE chip. The POE port meets the 802.3af or 802.3at standard. This series of POE switches can provide seamless connection for 10/100/1000M Ethernet, and the POE power supply port can automatically detect and supply power to powered devices that meet the IEEE802.3af or IEEE802.3at standard. Non POE devices do not supply power for intelligent detection, Only transmit data.

POE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.

With simple and convenient installation and maintenance methods and rich business features, it helps users create a safe and reliable high-performance network. Mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; Can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, schools, etc

General performance indicators
product name	10 port full gigabit POE switch
Model	ZT-IE6000S-8GP2GS
Port Definition	8 Gigabit POE network ports+2 Gigabit optical ports
network protocol	IEEE802.3
	IEEE802.3u
	IEEE802.3x
	IEEE802.3ab
	IEEE802.3z
POE parameters	PoE standard: Meets IEEE802.3af/IEEE802.3at
	Single port maximum：15.4 W (IEEE 802.3af)
	Single port maximum：30 W (IEEE 802.3at)
	PoE compatibility：IEEE 802.3af/at adaptive
	POE port output voltage: DC 52V
	POE power supply core: 1/2+; 3/6-
Network transmission medium	10BASE-T: Cat3、4、5 UTP(≤100 米)
	100BASE-TX: Cat5 or aboveUTP(≤100 米)
	1000BASE-TX:Cat5 or aboveUTP(≤100 米)
Dialing Code Definition	Extend OFF: Shared mode, all interfaces can communicate with each other, with a transmission distance of less than 100 meters and a transmission rate of 10M/100M/1000M adaptive;；
	Extend ON： 7-8 ports support 250 meter power supply and data transmission, with a transmission rate of 10M, while other ports remain unlimited；
Fiber optic indicators	multimode：850nm，1310nm Transmission distance：550m/2Km
	Single mode fiber：1310nm，1550nm Distance：20/40/60/80/100/120Km

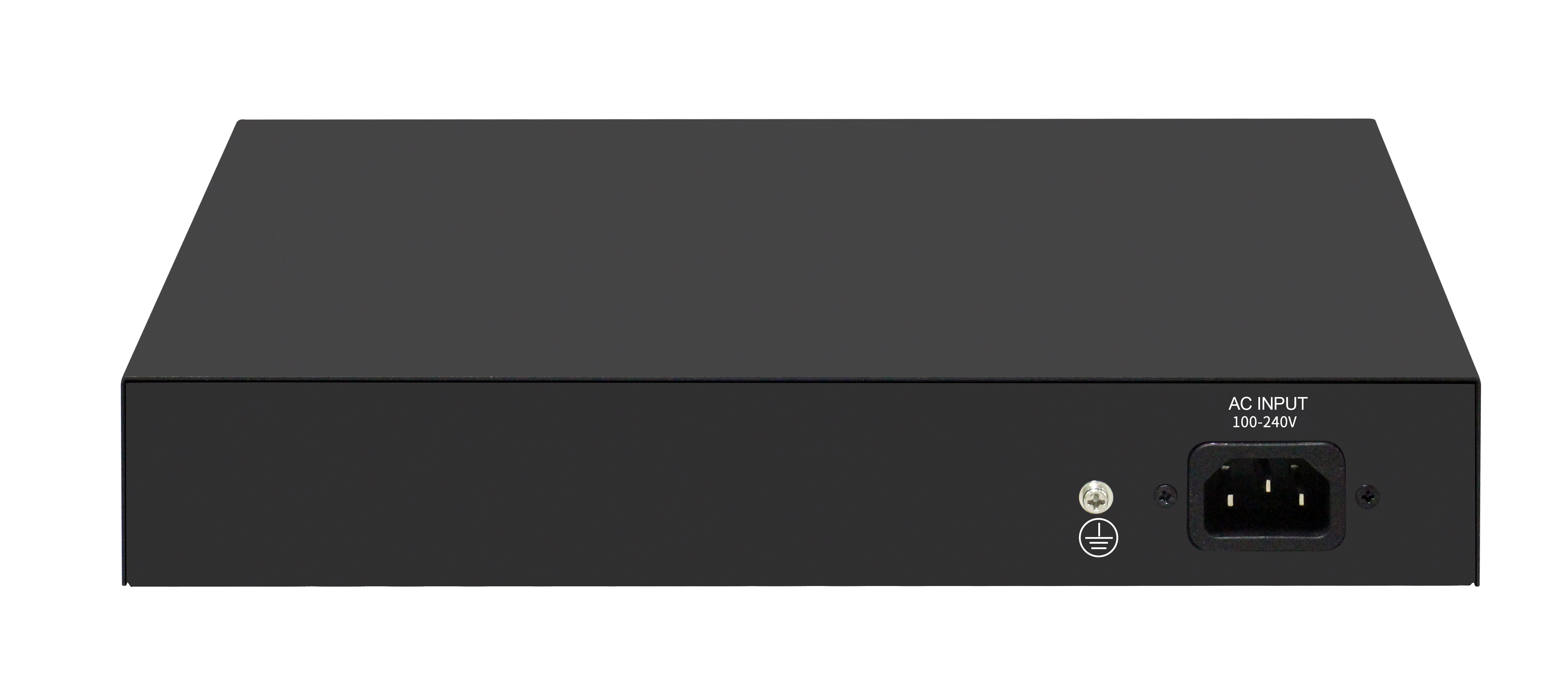

power supply	Voltage input: AC 100-240V Power：52V2.3A total power：120W
LED indication	PWR	Always on: The device is powered on
		Not on: The device is not powered on
	Mode	Blinking: link extension mode
		Not lit: Shared mode
		Slow flashing: Link connection is normal
	1-10	Flash: Data transmission is normal
		Not lit: Link not working
Dimension	Product size (L×W×H): 270mm180mm45mm
	Package size(L×W×H): 312mm262mm84mm
	Product weight：1.1kg
	package weight：1.7kg
work environment	operation temperature：-20~50°C
	Storage temperature：-40~85°C
	Working humidity: maximum relative humidity of 90%, non condensing
	Storage humidity: maximum relative humidity of 95%, non condensing
	Working height: maximum 10000 feet (3000 meters)
	Storage height: up to 10000 feet (3000 meters)
authentication	CE、FCC、CCC、RoHS
mean time between failures	100000 hours
packing list	1. Switch: 1 set
	2. Instructions: 1PCS
	3. Certificate of conformity and warranty card: 1PCS
	4. Power cord: 1 piece
	5. 1U ear hook: 1 pair
Hardware parameters
Chip Scheme	RTL8367S*2
backplane bandwidth	20Gbps
packet forwarding rate	14.88Mpps
Package cache	2M
MAC address table	8K
Forwarding mode	store and forward

Model:ZT-IE6000S-8GP2GS
