ZT-IE6000S-24GP2GS_Shenzhen Weixun Zetong Technology Co., Ltd

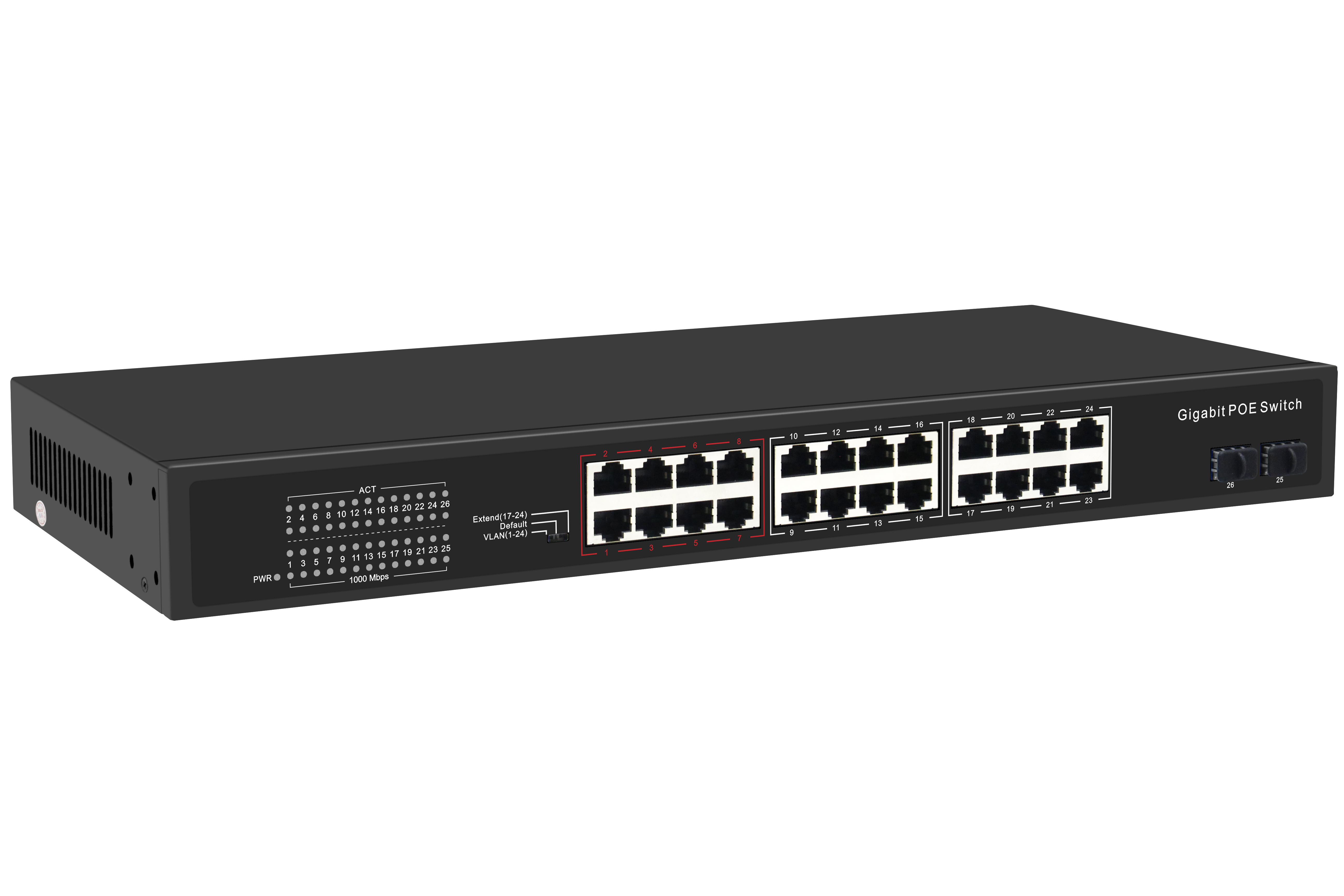

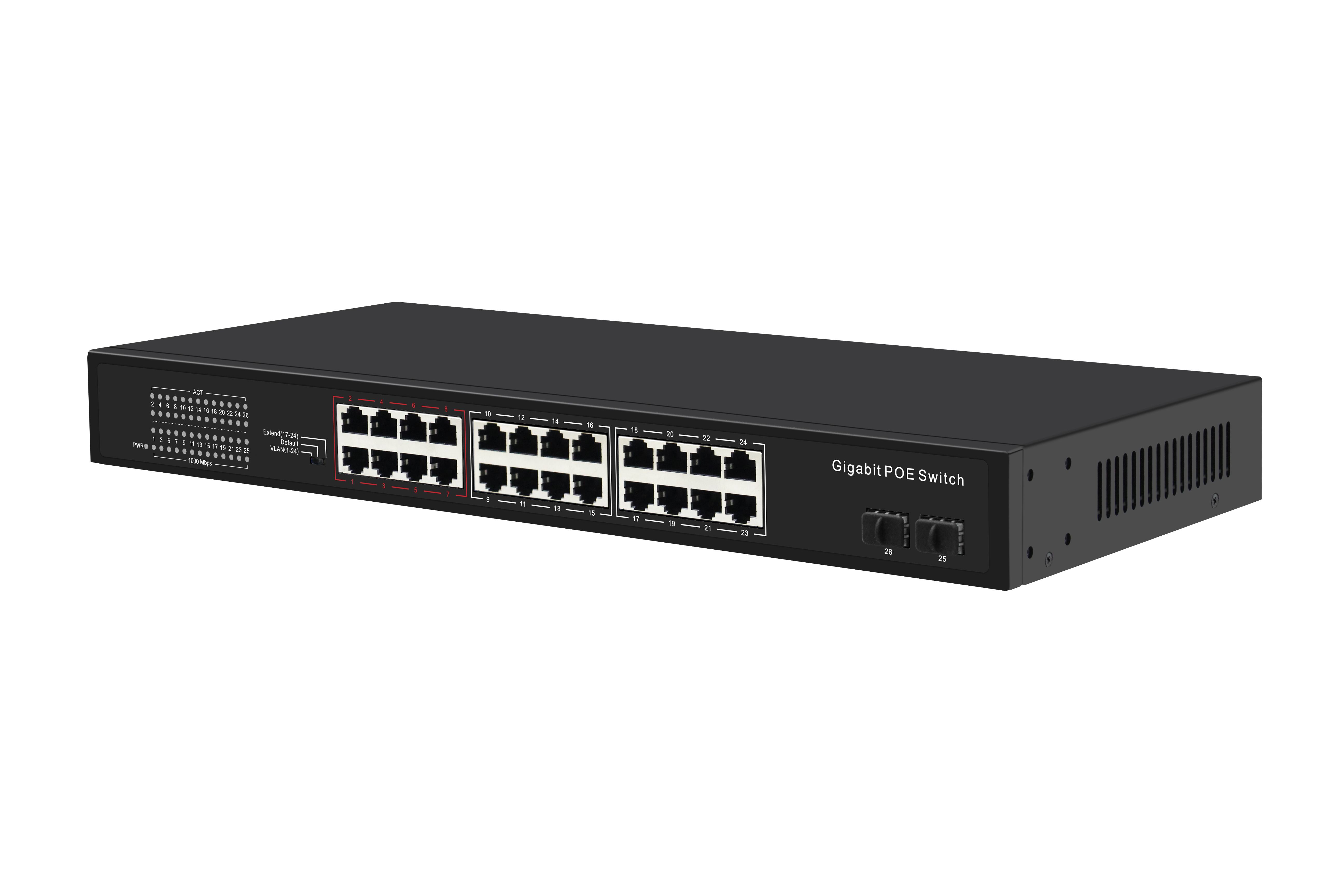

26 Ports 10/100/1000M PoE Switch with 24 Port 10/100/1000M PoE + 2 Port Gigabit SFP Uplink , using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone, wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.

With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.

I/O Interface

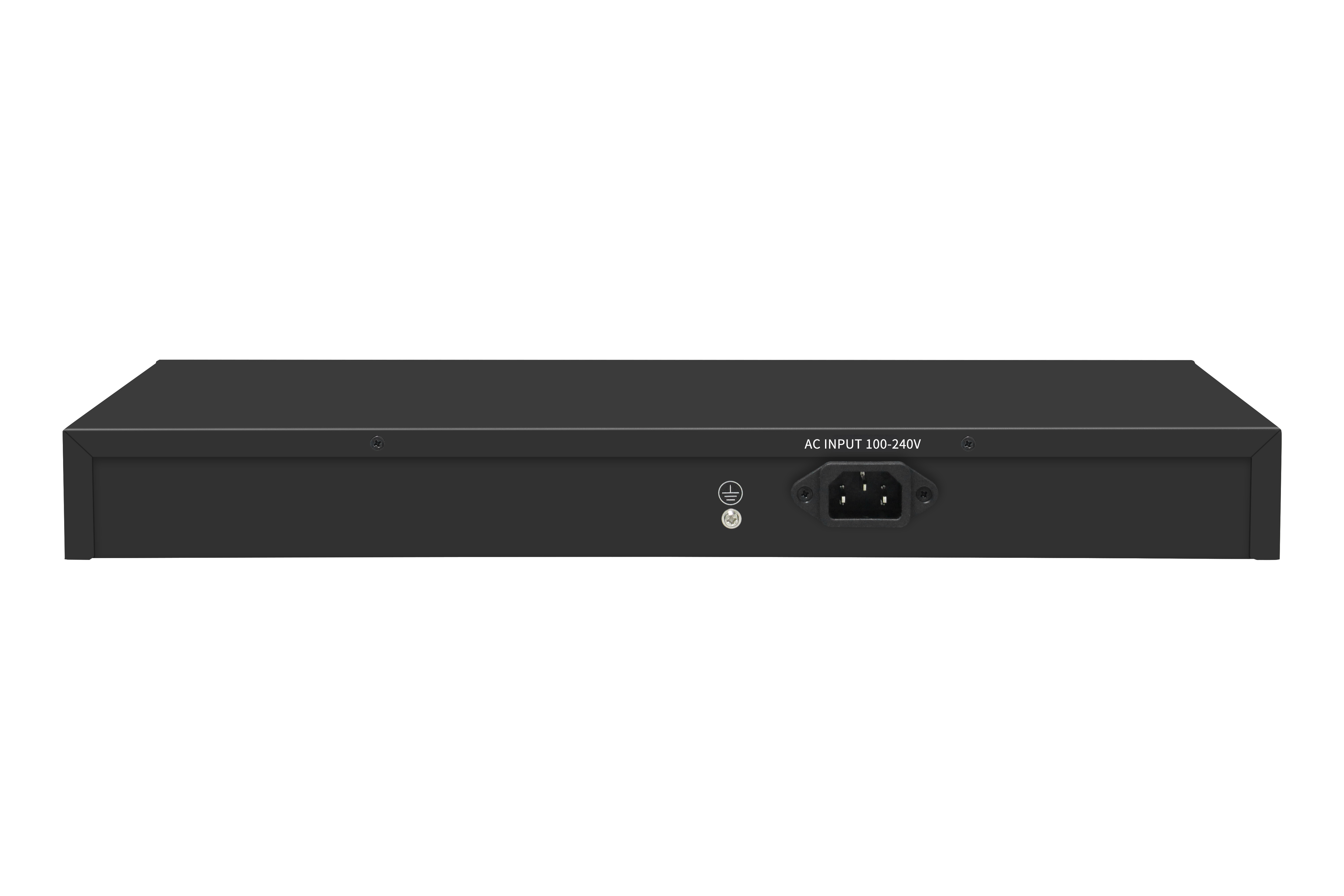

Power	Input: AC 100-240V, 50/60Hz
Ethernet	2410/100/1000M PoE Port 2Gigabit SFP Port
Performance
Switching Capacity	52Gbps
Throughput	38.7Mpps
Packet Buffer	4M
MAC Address	8K
Jumbo Frame	9Kbytes
Transfer Mode	Store and forward
MTBF	100000 hour
Standard
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3z (1000Base-FX) IEEE802.3x (Flow control)
PoE Protocol	IEEE802.3af （15.4W） IEEE802.3at （30W）
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Network Medium	10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m)
Optical Media	Multimode fiber : 50/125、62.5/125、100/140um Single mode fiber : 8/125、8.7/125、9/125、10/125um
Protection
Security Certificae	CE、FCC、RoHS
Environment
Working Environment	Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet
Indication
LED Indicators	PWR（power supply），ACT（Link&Data），1000Mbps（1000M Link）
DIP Switch	VLAN: 1-24 port is isolated each other, but all can communicate with uplink port 25/26 Default :All ports communicate freely Extend:17-24 Port support 250 meters transmission on 10Mbps/s
Mechanical
Structure Size	Product Dimension (LWH): 445mm285mm45mm Package Dimension (LWH): 500mm350mm90mm N.W：3.2kg G.W：3.8 kg
Packing Info	Carton MEAS：600495435mm Packing Qty：6 units Packing Weight：24.2KG
Power Voltage	Input Voltage ： AC 100-240V, 50/60Hz Power supply：52V7.69A
Package List	Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair
Ordering Info
ZT-IE6000S-24GP2GS-300	26-port 10/100/1000M PoE Switch(300W)
ZT-IE6000S-24GP2GS-400	26-port 10/100/1000M PoE Switch(400W)

Model:ZT-IE6000S-24GP2GS
