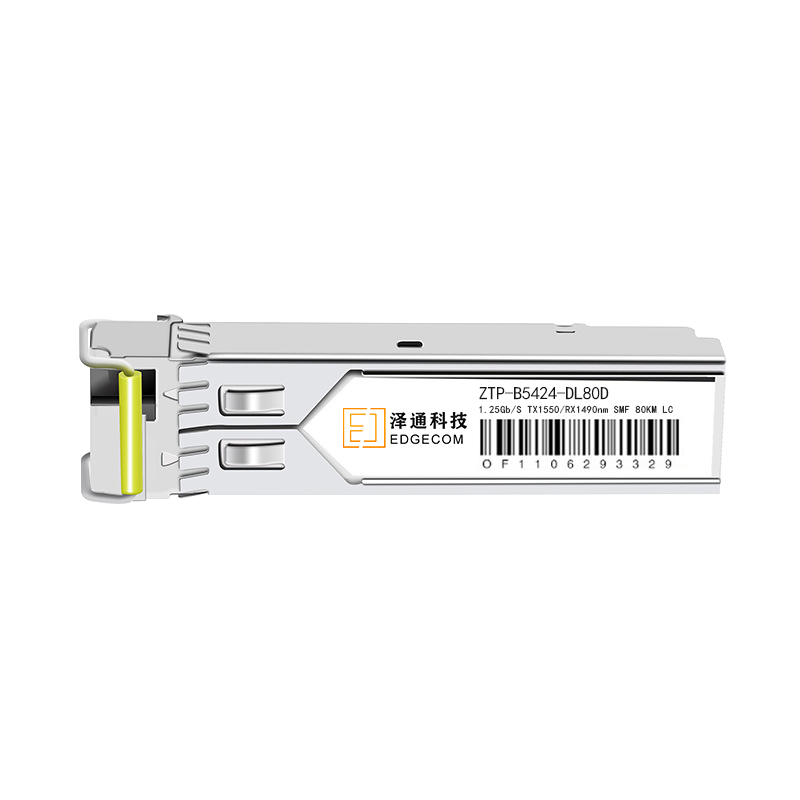

ZTP-B5424-DL80D is a 1.25Gbps SFP encapsulated transceiver that meets MSA standards. It is designed, assembled, and tested in ISO certified manufacturing facilities, making it an ideal choice for meeting various optical network applications
Hot swappable SFP packaging
Supports data rates up to 1.25Gbps
3.3V single power supply and industrial low power consumption
The maximum link length on SMF fiber can reach 80 kilometers
Complies with Level 1 laser safety standards
Compliant with RoHS 6 standards (lead-free)
Working shell temperature: 0-70 ° C (optional for expansion/industrial grade)
Compliant with SFP MSA specifications
low power consumption
| model | ZTP-B5424-DL80D |
| package | SFP |
| Standards and Protocols | 1000BASE BX |
| rate | 1.25Gbps |
| Working wavelength | TX1550/RX1490nm |
| medium | SMF |
| Distance | 80KM |
| interface | Simplex LC |
| Detector Type | DFB |
| emitter type | PIN |
| Emission light power | -2~+3dBm |
| receiver sensitivity | ≦-24dBm |
