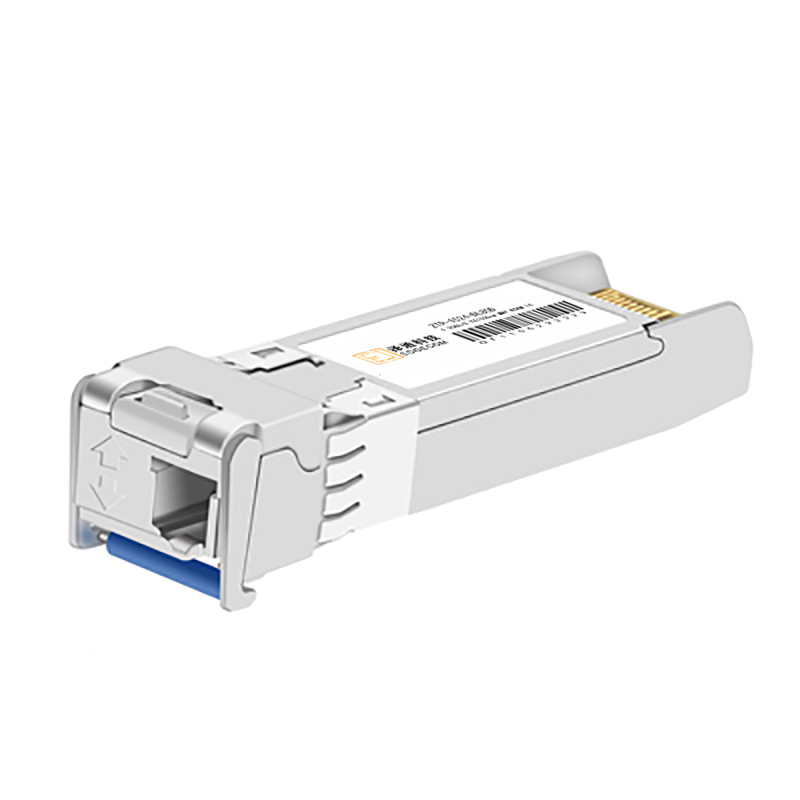

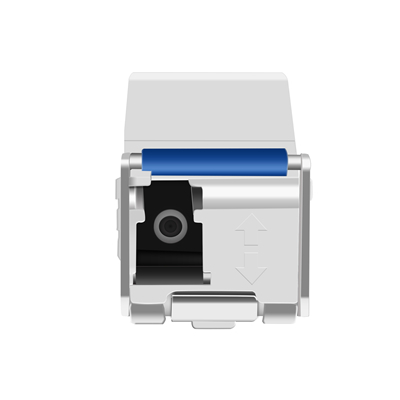

ZTP-B2310G-DL10D is a 10Gbps SFP+encapsulated transceiver that meets MSA standards. It is designed, assembled, and tested in ISO certified manufacturing facilities, making it an ideal choice for meeting various optical network applications.
Hot swappable SFP+packaging
Supports data rates up to 10Gbps
3.3V single power supply and industrial low power consumption
The maximum link length on SMF fiber can reach 10 kilometers
Complies with Level 1 laser safety standards
Compliant with RoHS 6 standards (lead-free)
Working shell temperature: 0-70 ° C (optional for expansion/industrial grade)
Complies with SFP+MSA specifications
low power consumption
| model | ZTP-B2310G-DL10D |
| package | SFP+ |
| Standards and Protocols | 10GBASE BX |
| rate | 10Gbps |
| Working wavelength | TX1270/RX1330nm |
| medium | SMF |
| Distance | 10KM |
| interface | LC |
| Detector Type | DFB |
| PIN | |
| Emission light power | -6~-1dBm |
| receiver sensitivity | ≦-14dBm |
