Model:ZTP-1510G-EL80D

SFP+ 10Gbps1550nm SMF 80KM LC

ZTP-1510G-EL80D is a 10Gbps SFP+encapsulated transceiver that meets MSA standards. It is designed, assembled, and tested in ISO certified manufacturing facilities, making it an ideal choice for meeting various optical network applications

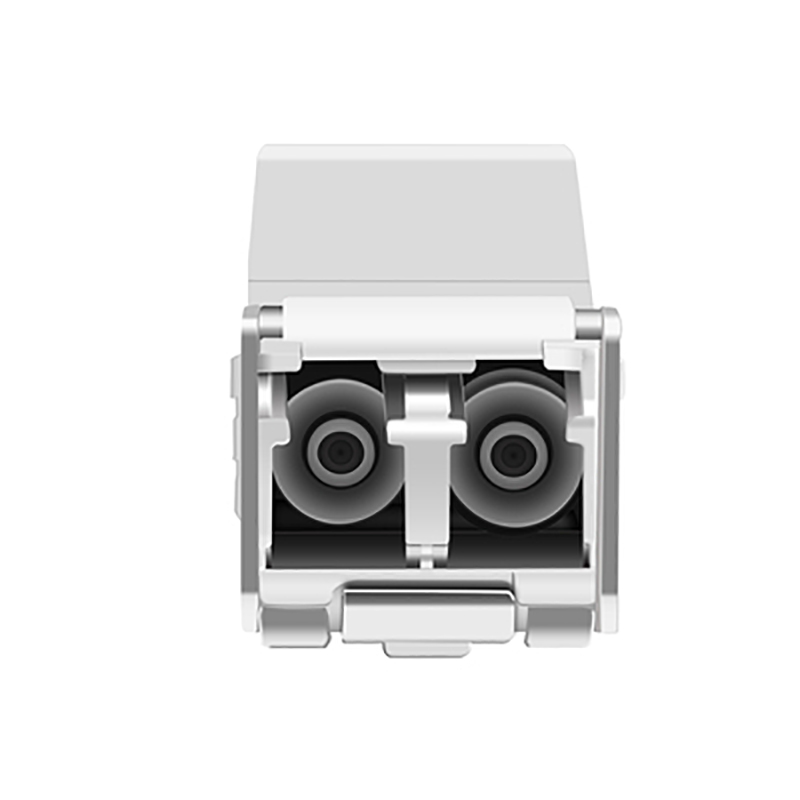

ZTP-1510G-EL80D(图1)

Introduction Parameter Size Download

Hot swappable SFP+packaging

Supports data rates up to 10Gbps

3.3V single power supply and industrial low power consumption

The maximum link length on MMF fiber can reach 80 kilometers

Complies with Level 1 laser safety standards

Compliant with RoHS 6 standards (lead-free)

Working shell temperature: 0-70 ° C (optional for expansion/industrial grade)

Complies with SFP+MSA specifications

low power consumption


modelZTP-1510G-EL80D
packageSFP+
Standards and Protocols10GBASE ZR
rate10Gbps
Working wavelength1550nm
mediumSMF
Distance80KM
interfaceDuplex LC
Detector TypeEML
emitter typeAPD
Emission light power0~+5dBm
receiver sensitivity≦-23dBm
