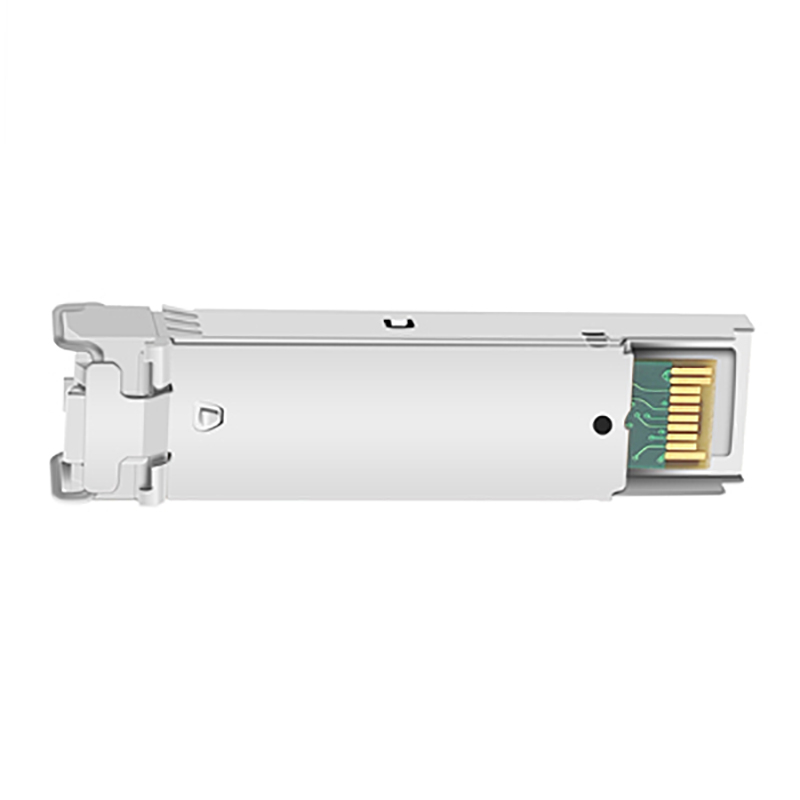

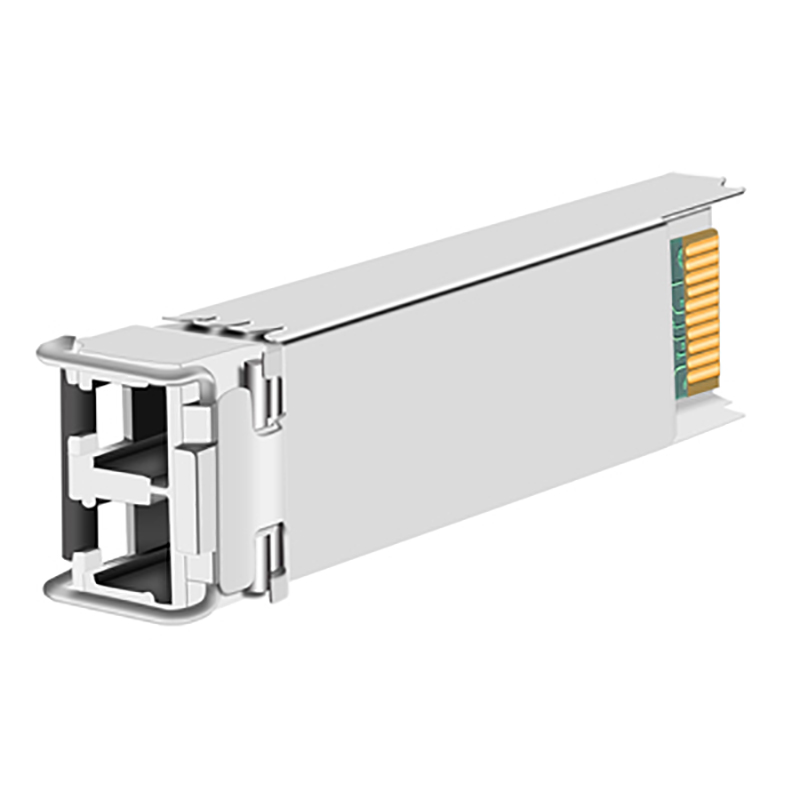

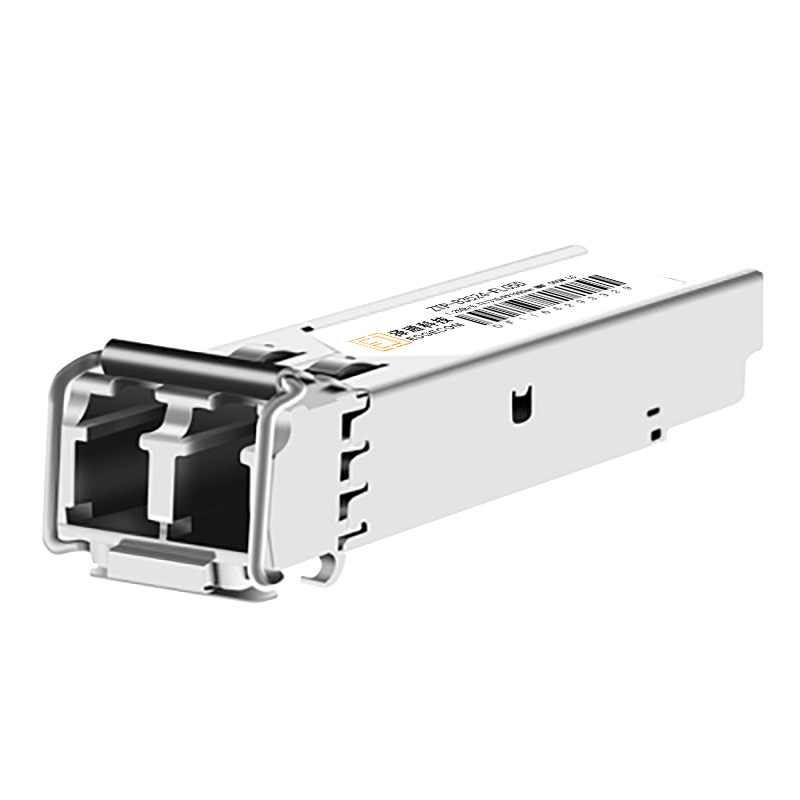

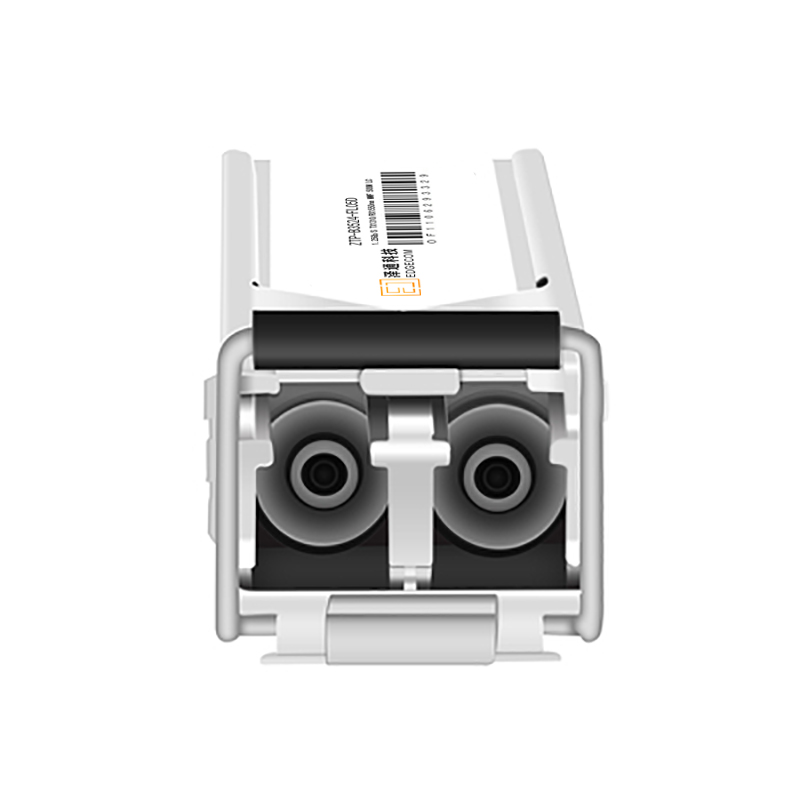

ZTP-0824-VL05 is a 1.25Gbps SFP encapsulated transceiver that meets MSA standards. It is designed, assembled, and tested in ISO certified manufacturing facilities, making it an ideal choice for meeting various optical network applications.
Hot swappable SFP packaging
Supports data rates up to 1.25Gbps
3.3V single power supply and industrial low power consumption
The maximum link length on MMF fiber can reach 550 meters
Complies with Level 1 laser safety standards
Compliant with RoHS 6 standards (lead-free)
Working shell temperature: 0-70 ° C (optional for expansion/industrial grade)
Compliant with SFP MSA specifications
low power consumption
model | ZTP-B4524-DL05D |
| package | SFP |
| Standards and Protocols | 1000BASE-SX |
| rate | 1.25Gbps |
| Working wavelength | 850nm |
| medium | MMF |
| Distance | 550M |
| interface | Duplex LC |
| Detector Type | VCSEL |
| emitter type | PIN |
| Emission light power | -9～-3dBm |
| receiver sensitivity | ≦-17dBm |
