Model:ZTP-1G-T01

SFP 1000Mbps/copper wire 100M RJ45 optical transceiver

ZTP-1G-T01 is a 1000Mbps SFP encapsulated transceiver that meets MSA standards. It is designed, assembled, and tested in ISO certified manufacturing facilities, making it an ideal choice for meeting various optical network applications.

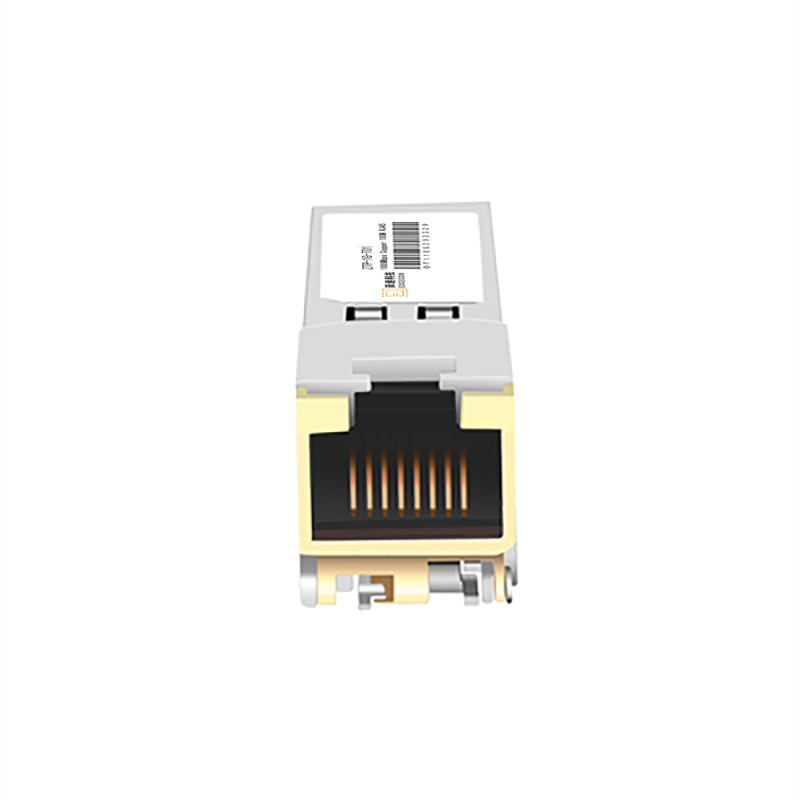

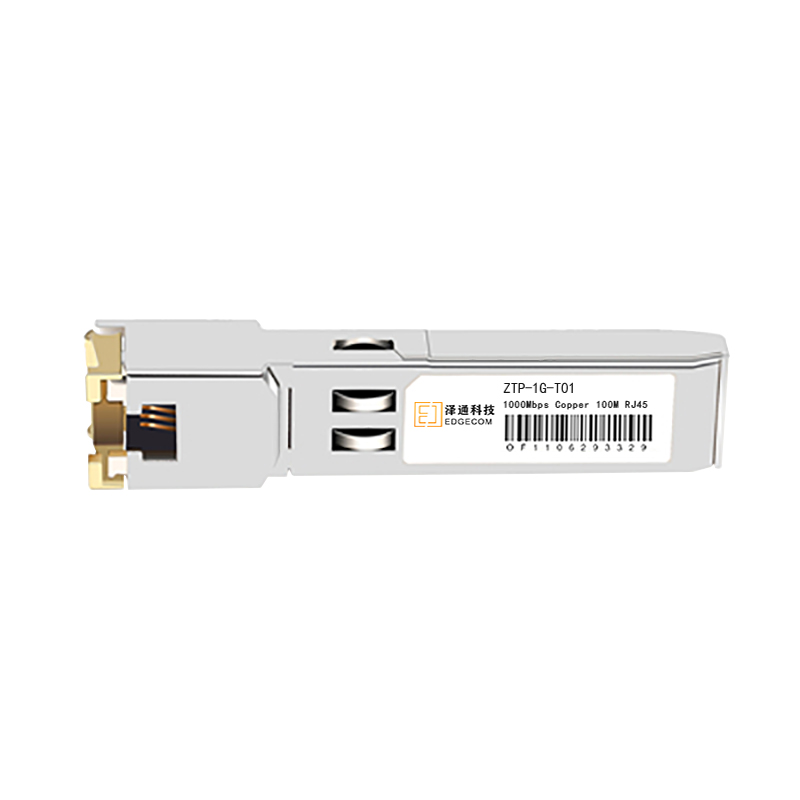

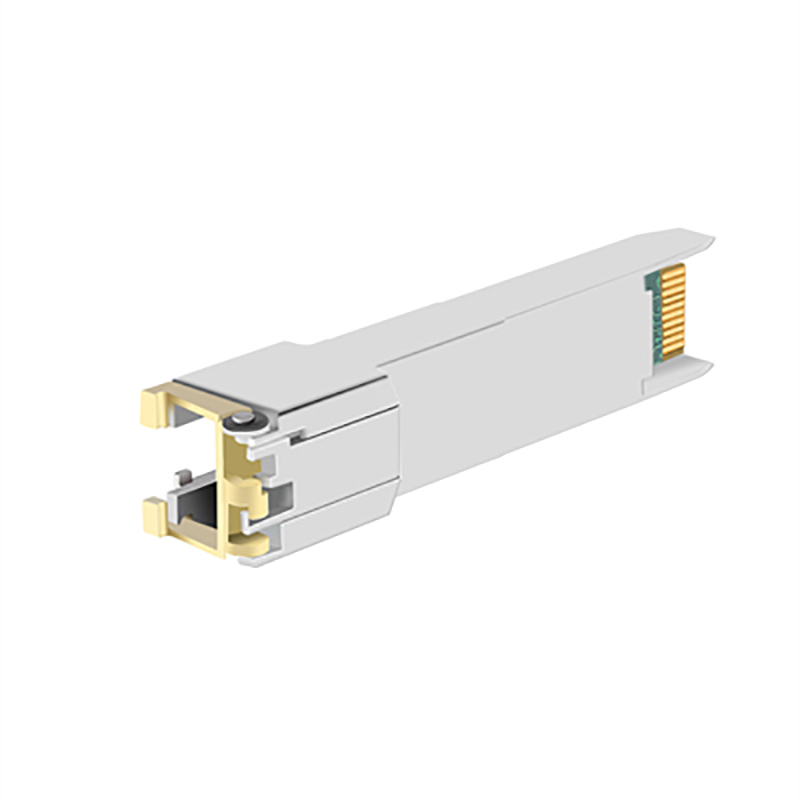

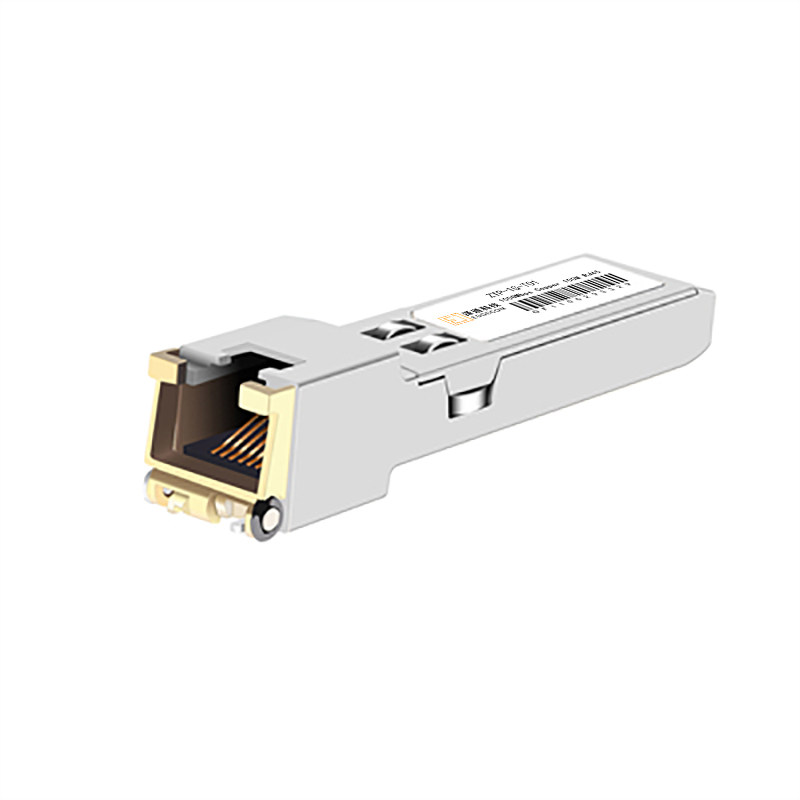

ZTP-1G-T01(图1)

Introduction Parameter Size Download

Hot swappable SFP packaging

Supports data rates up to 1000Mbps

Single 3.3V power supply and industrial low power consumption

The maximum link length of copper fiber optic cable can reach 100M

Meets Level 1 laser safety requirements

Compliant with RoHS 6 (lead-free)

Operating temperature: 0-70 ℃ (optional expansion/industrial grade)

Compliant with SFP MSA specifications

low power consumption


P/NWP-1G-T01
Form FactorSFP
Standard & protocal1000BASE T
Data Rate1000Mbps
WaveLength/
MediaCopper Cable
Reach100M
InterfaceRJ45
Tx Source/
Rx Source/
Tx Power/
Rx Power/
Temp.Tc/Ti
Rx_LOSNO
Tx DisableNO
