Model:ZT-IE6050-1TX1FS-WA

1x10/100Base TX~1x10/100Base FX (1310nm SMF 20km, SC) non managed industrial Fast Ethernet switch

1 x 100 Mbps electrical port+1 x 100 Mbps FX optical port industrial grade Ethernet switch, supporting 1 x 10/100Base-T (X) electrical port and 1 x 10/100Base-X optical port. The product complies with FCC, CE, and RoHS standards. ZT-IE6050-1TX1FS-WA has a working temperature of -40 ℃~75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level shell and LED indicator light make the ZT-IE6050-1TX1FS-WA a plug and play industrial device, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in industrial scenarios with Ethernet access such as comprehensive energy sources, smart transportation, smart factories, smart cities, and smart mines.

ZT-IE6050-1TX1FS-WA (图1)

Introduction Parameter Size Download
  • Adopting high-quality optoelectronic integrated modules to provide good optical and electrical characteristics

  • Ensure reliable data transmission and long working life

  • Supports full duplex or half duplex modes with automatic negotiation capability

  • The network interface supports fully automatic cross recognition

  • Built in storage and forwarding mechanism, supporting multiple protocols

  • Green and energy-saving, using low-power CPUs

  • Working power supply: DC 12V-52V provides reverse protection and 4A overcurrent protection

  • SC/FC/ST/SFP fiber optic interface optional

  • Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ s)

  • Meets industrial level operational standards, with an average time between failures of over 300000 hours


Standards and Protocols

IEEE802.3-10Base-T

IEEE802.3u-100Base-Tx

IEEE802.3x–Flow control

interface

Electric port: 1x10/100Base-T (X), RJ45, automatic detection

Optical port: 1x10/100Base-F (X), SC/FC/ST/LC optional

Full/half duplex mode, MDI/MDI-X adaptive

LED indicator lightPower indicator light: PWR
Exchange Properties

Transmission method: storage and forwarding

Backplane bandwidth: 0.4G

MAC address: 1K

Application level: Level 2

Power consumption:<3W

Exchange latency:<3us

Cache: 448Kbit

power supply

Input voltage: DC12-52V

Supports dual power redundancy

Supports reverse protection

Access terminal: Phoenix terminal

Consumption

Empty: 1W@24VDC (Non PoE)

the full load: 3W@24VDC (Non PoE)

work environment

Working temperature: -40 ℃~75 ℃

Storage temperature: -40 ℃~85 ℃

Relative humidity: 5%~95% (without condensation)

mechanical structure

Housing: IP40 protection level, aluminum alloy housing

Installation: DIN rail mounted

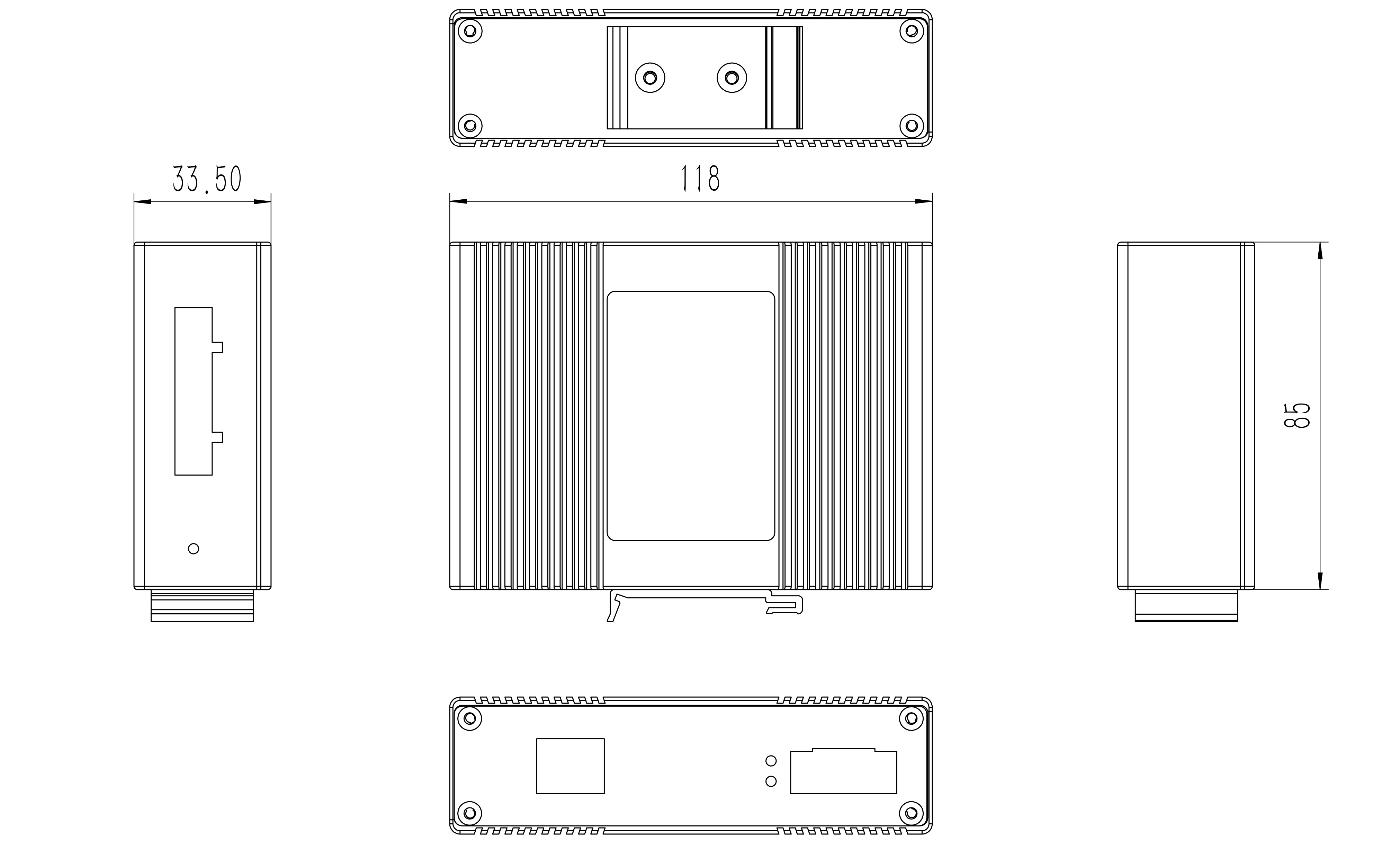

Size: (length × wide × Height) 118x86x39mm

Product weight: 0.36Kg

Industry standards

IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4

●Air discharge: ± 15kV

● Contact discharge: ± 8kV

IEC 61000-4-5 (Surge, Surge Immunity), Level 4

●Power supply: common mode ± 4kV, differential mode ± 2kV

●Ethernet interface: ± 4kV

Impact: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

认证CE, FCC, RoHS, ISO9001, Ministry of Public Security testing
warranty  5 years
