Model:ZT-IE6050-1GP1GS-WA

1x10/100/1000Base TX~1x1000Base FX (1310nm, SMF 20km, SC) Unmanaged Industrial Gigabit Ethernet PoE Switch

1 Gigabit PoE port+1 Gigabit FX optical port industrial Ethernet switch, supporting 1 10/100/1000Base-T (X) PoE port and 1 000Base-T (X) port. The product complies with FCC, CE, and RoHS standards. ZT-IE6050-1GP1GS-WA has a working temperature of -40 ℃~75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level shell and LED indicator light make the ZT-IE6050-1GP1GS-WA a plug and play industrial grade device. It adopts high-quality and high-speed network ICs and the most stable PoE chips, and the PoE port meets the 802.3af or 802.3at standards, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in comprehensive energy, smart transportation, and smart factories, Industrial scenarios with Ethernet access such as smart cities and smart mines.

ZT-IE6050-1GP1GS-WA(图1)

Adopting high-quality optoelectronic integrated modules to provide good optical and electrical characteristics

Ensure reliable data transmission and long working life

Supports full duplex or half duplex modes with automatic negotiation capability

The network interface supports fully automatic cross recognition

Built in storage and forwarding mechanism, supporting multiple protocols

Green and energy-saving, using low-power CPUs

Working power supply: DC12V-52V provides reverse protection and 4A overcurrent protection

SC/FC/ST/LC/optional

Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ S)

Meet the industrial operation standard, and the Mean time between failures is more than 300000 hours

Standards and Protocols	IEEE802.3-10Base-T IEEE802.3u-100Base-Tx IEEE802.3ab-1000Base-T(x) IEEE802.3x IEEE802.3af/at
interface	Electrical port: 1x10/100/1000Base-T (X), RJ45, automatic detection Optical port: 1x1000Base-F (X), SC/FC/ST/LC optional Full/half duplex mode, MDI/MDI-X adaptive
LED	Power indicator light：PWR
Exchange Properties	Transmission method: storage and forwarding Backplane bandwidth: 4G MAC address: 8K Application level: Level 2 Power consumption:<3W Exchange latency:<3us Cache: 1Kbit
PoE	PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive PoE port output voltage: DC 48-57V PoE power supply core: 1/2+; 3/6-
power supply	Input voltage: DC12-52V Supports dual power redundancy Supports reverse protection Access terminal: Phoenix terminal
consumption	Empty: 1W@24VDC (Non PoE) Full load: 3W@24VDC (Non PoE)
work environment	Working temperature: -40 ℃~75 ℃ Storage temperature: -40 ℃~85 ℃ Relative humidity: 5%~95% (without condensation)

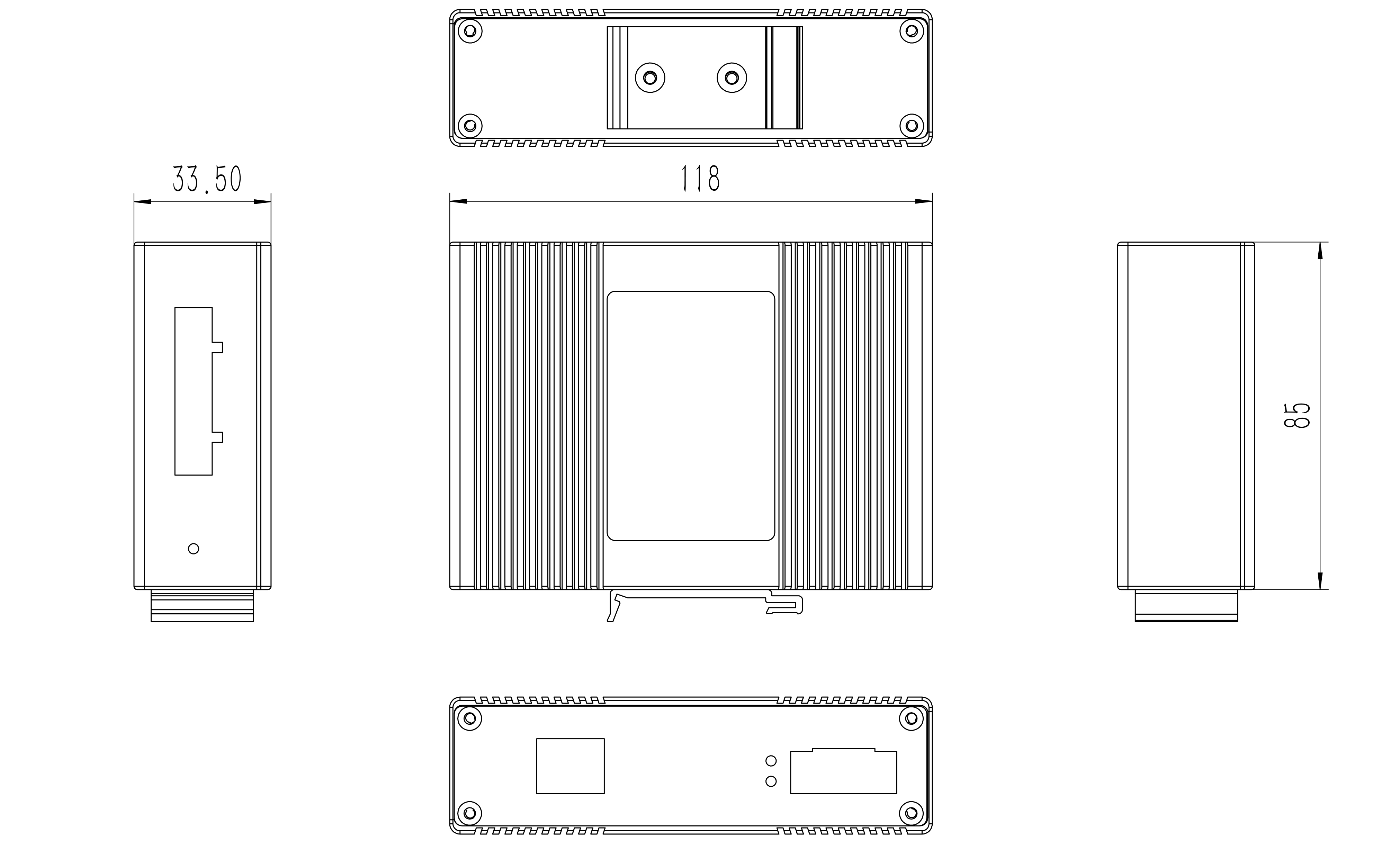

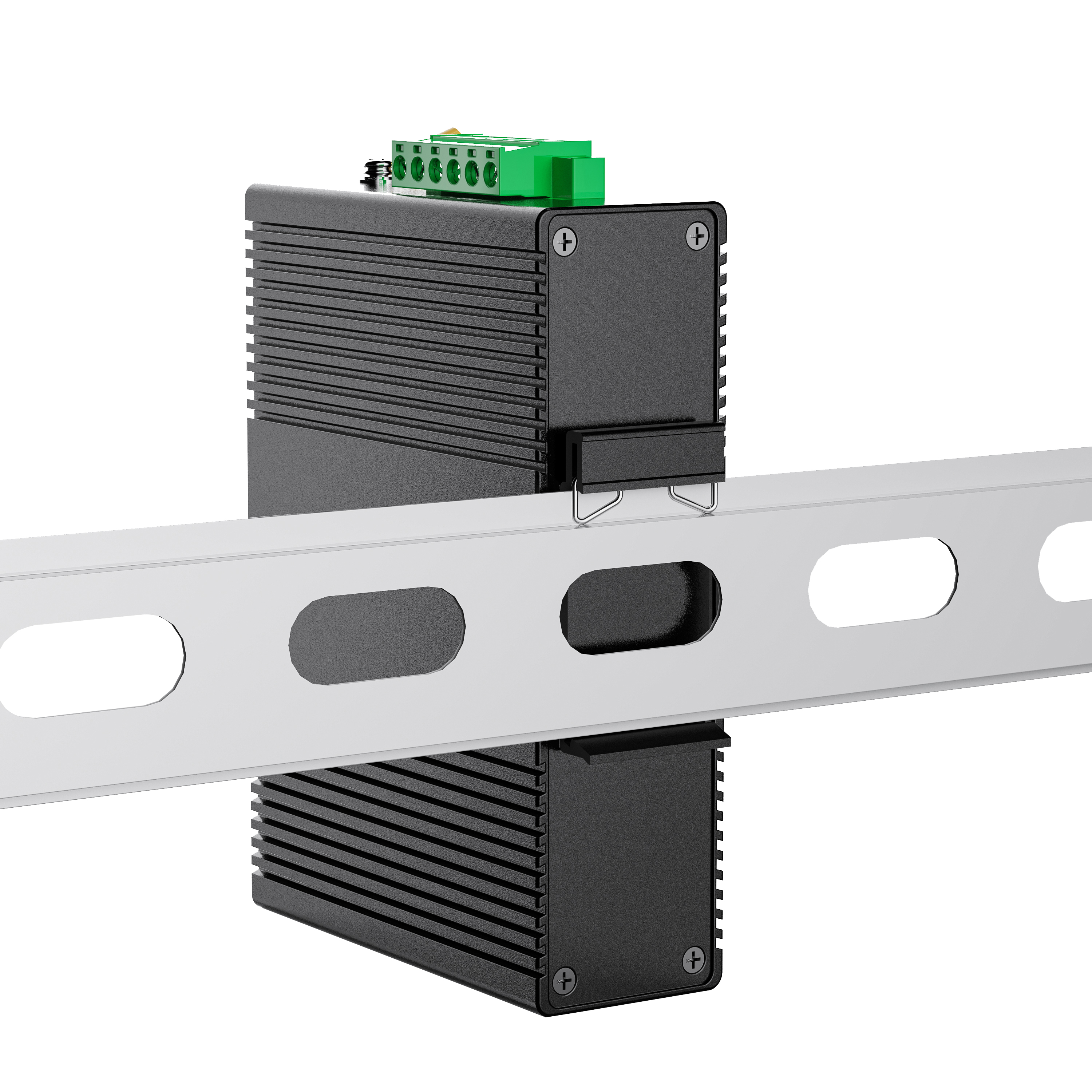

mechanical structure	Housing: IP40 protection level, aluminum alloy housing Installation: DIN rail mounted Size: (length × wide × Height) 118x86x39mm Product weight: 0.36Kg
Industry standards	IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4 Air discharge: ± 15kV ● Contact discharge: ± 8kV IEC 61000-4-5 (Surge, Surge Immunity), Level 4 Power supply: common mode ± 4kV, differential mode ± 2kV Ethernet interface: ± 4kV Impact: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
authentication	CE, FCC, RoHS, ISO9001, Ministry of Public Security testing
warranty	5 years
