Model:ZT-IE6050-2GT1GS-WA

2x10/100/1000Base TX~1x10/100/1000Base FX (1310nm SMF 20km SC) Unmanaged industrial grade Gigabit Ethernet switch

Two gigabit electrical ports and one gigabit FX optical port industrial Ethernet switch, supporting two 10/100/1000Base-T (X) electrical ports and one 1000Base-X optical port. The product complies with FCC, CE, and RoHS standards. ZT-IE6050-2GT1GS-WA has a working temperature of -40 ℃ to 75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level shell and LED indicator light make the ZT-IE6050-2GT1GS-WA a plug and play industrial device, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in industrial scenarios with Ethernet access such as comprehensive energy sources, smart transportation, smart factories, smart cities, and smart mines.

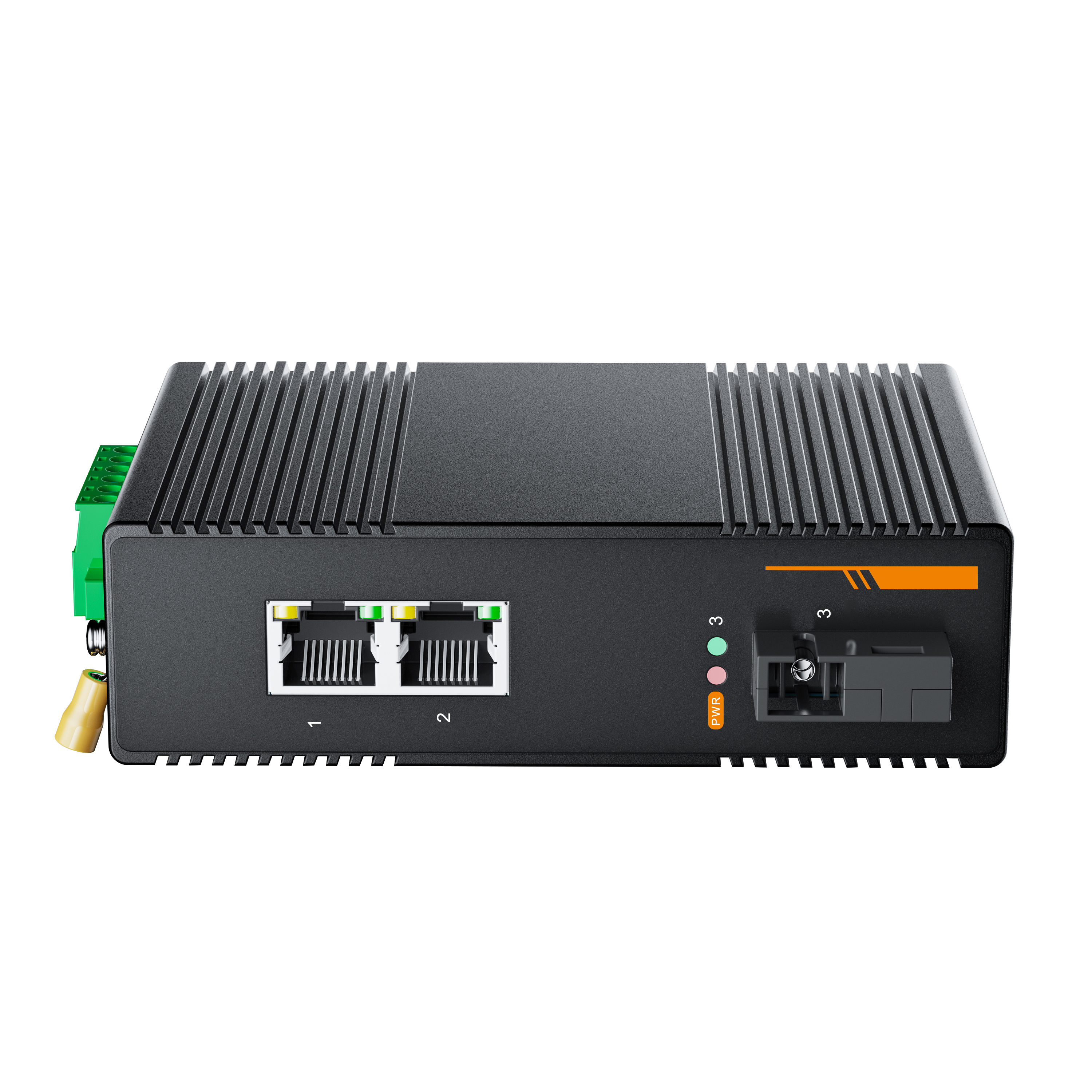

ZT-IE6050-2GT1GS-WA(图1)

Adopting high-quality optoelectronic integrated modules to provide good optical and electrical characteristics

Ensure reliable data transmission and long working life

Supports full duplex or half duplex modes with automatic negotiation capability

The network interface supports fully automatic cross recognition

Built in storage and forwarding mechanism, supporting multiple protocols

Green and energy-saving, using low-power CPUs

Working power supply: DC 12V-52V provides reverse protection and 4A overcurrent protection

Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ S)

Meet the industrial operation standard, and the Mean time between failures is more than 300000 hours

Standards and Protocols	IEEE802.3-10Base-T IEEE802.3u-100Base-Tx IEEE802.3ab-1000Base-T(x) IEEE802.3x - Flow Control
interface	Electrical port：1x10/100/1000Base-T(X)，RJ45，Automatic flow control Port：1x1000Base-F(X)，SC/FC/ST/LC Full/half duplex mode, MDI/MDI-X automatic detection
LED indicator light	Power indicator light: PWR
Exchange Properties	Transmission method: storage and forwarding Backplane bandwidth: 4G MAC address: 8K Application level: Level 2 Power consumption:<3W Exchange latency:<3us Cache: 1Kbit
power supply	Input voltage: DC12-52V Supports dual power redundancy Supports reverse protection Access terminal: Phoenix terminal
consumption	Empty: 1W@24VDC (Non PoE) Full load: 3W@24VDC (Non PoE)
work environment	Working temperature: -40 ℃~75 ℃ Storage temperature: -40 ℃~85 ℃ Relative humidity: 5%~95% (without condensation)

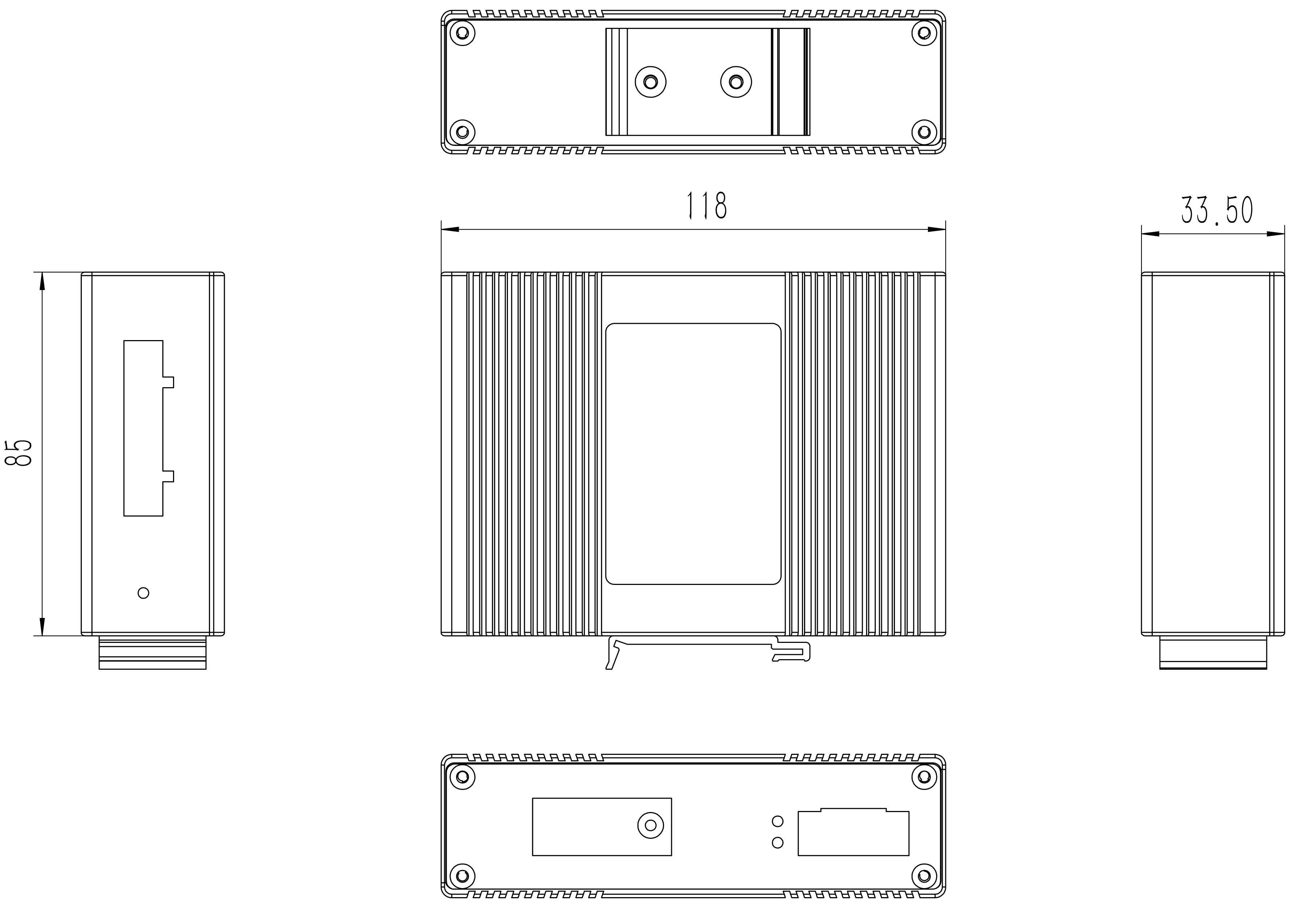

mechanical structure	Housing: IP40 protection level, aluminum alloy housing Installation: DIN rail mounted Size: (length × wide × Height) 118x86x39mm Product weight: 0.36Kg
Industry standards	IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4 Air discharge: ± 15kV ● Contact discharge: ± 8kV IEC 61000-4-5 (Surge, Surge Immunity), Level 4 Power supply: common mode ± 4kV, differential mode ± 2kV Ethernet interface: ± 4kV Impact: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
authentication	CE, FCC, RoHS, ISO9001, Ministry of Public Security testing
warranty	5 years
