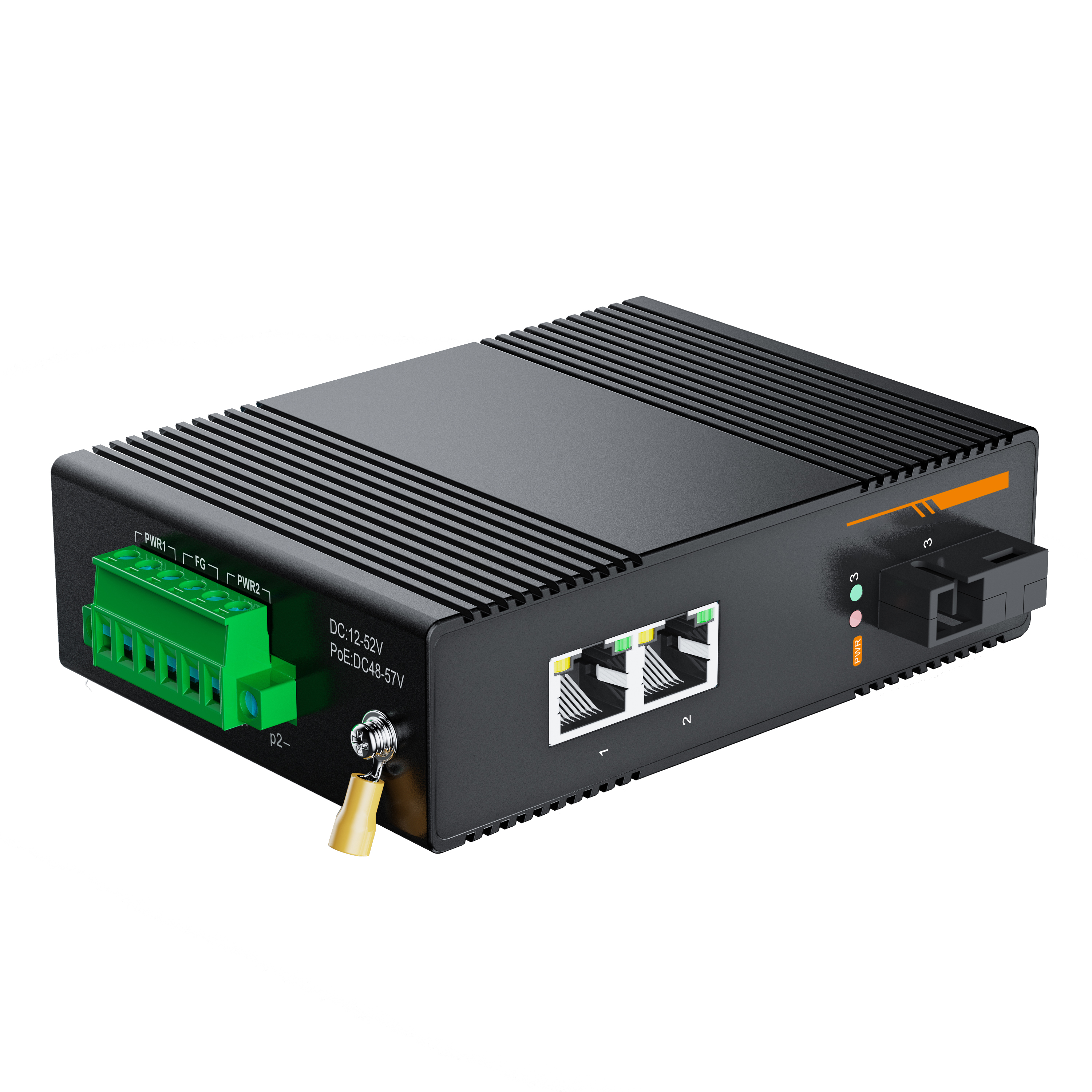

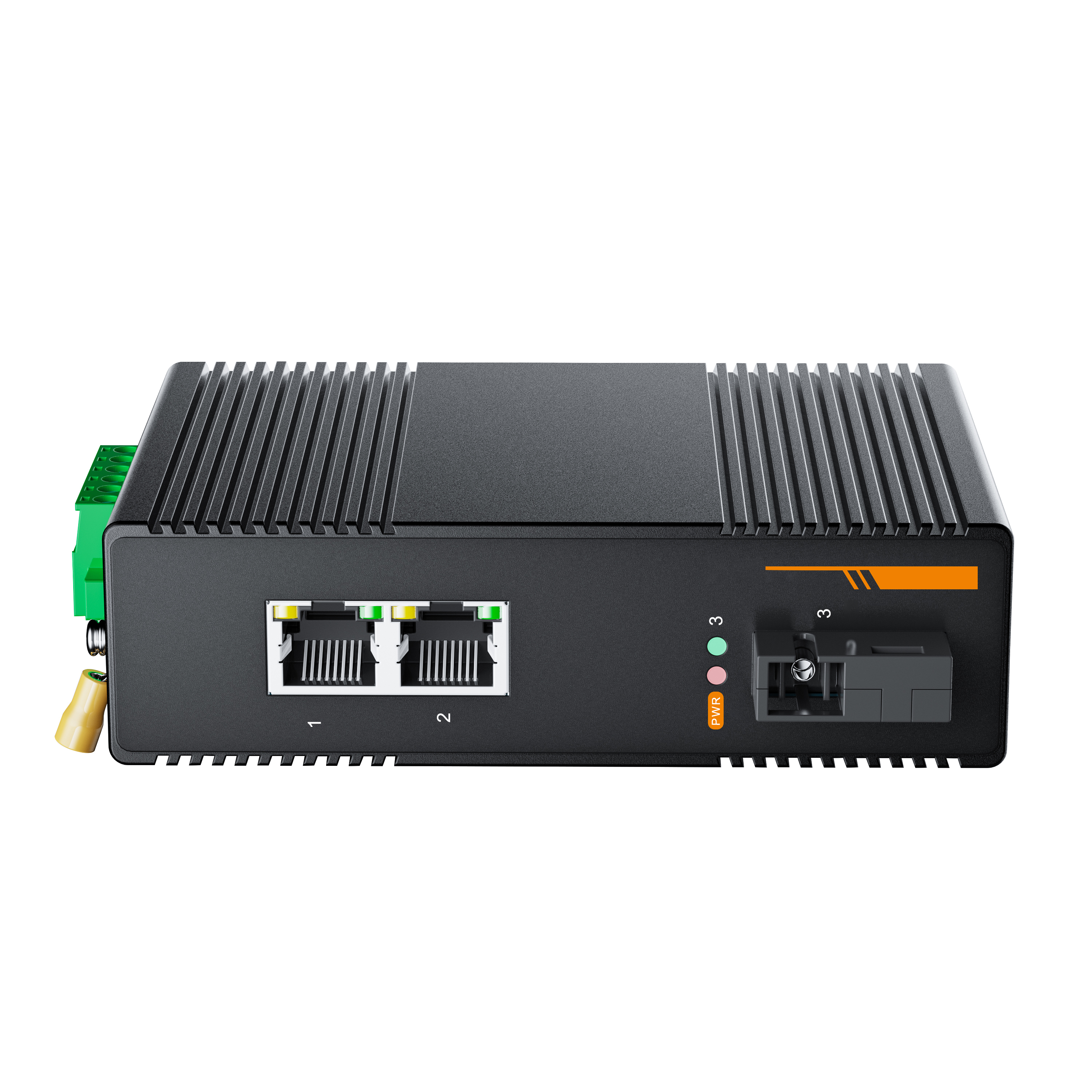

Model:ZT-IE6050-2GP1GS-WA

2x10/100/1000Base TX~1x10/100/1000Base FX (1310nm SMF 20km SC) Unmanaged Industrial Gigabit Ethernet PoE Switch

Two gigabit PoE ports and one gigabit FX optical port industrial Ethernet switch, supporting two 10/1001000Base-T (X) ports and one 1000Base-X optical port. The product complies with FCC, CE, and RoHS standards. ZT-IE6050-2GP1GS-WA has a working temperature of -40 ℃ to 75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level shell and LED indicator light make the ZT-IE6050-2GP1GS-WA a plug and play industrial device, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in industrial scenarios with Ethernet access such as comprehensive energy sources, smart transportation, smart factories, smart cities, and smart mines.

ZT-IE6050-2GP1GS-WA(图1)


Introduction Parameter Size Download

Adopting high-quality optoelectronic integrated modules to provide good optical and electrical characteristics

Ensure reliable data transmission and long working life

Supports full duplex or half duplex modes with automatic negotiation capability

The network interface supports fully automatic cross recognition

Built in storage and forwarding mechanism, supporting multiple protocols

Green and energy-saving, using low-power CPUs

Working power supply: DC12V-52V provides reverse protection and 4A overcurrent protection

SC/FC/ST/LC/optional

Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ S)

Meet the industrial operation standard, and the Mean time between failures is more than 300000 hours


Standards and Protocols

IEEE802.3-10Base-T

IEEE802.3u-100Base-Tx

IEEE802.3ab-1000Base-T(x)

IEEE802.3x–Flow control

IEEE802.3af/at

interface

Electrical port:2x10/100/1000Base-T(X),RJ45,Automatic flow control

Port:1x1000Base-F(X),SC/FC/ST/LC

Full/Half Duplex Mode,MDI/MDI-X Auto detect

LED indicator lightPower indicator light:PWR
Exchange Properties

Transmission method: storage and forwarding

Backplane bandwidth: 6G

MAC address: 8K

Application level: Level 2

Power consumption:<3W

Exchange latency:<3us

PoE parameters

PoE standard: Meets IEEE802.3af/IEEE802.3at

Single port maximum: 15.4 W (IEEE 802.3af)

Single port maximum: 30 W (IEEE 802.3at)

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output voltage: DC 48-57V

PoE power supply core: 1/2+; 3/6-

power supply

Input voltage: DC12-52V

Supports dual power redundancy

Supports reverse protection

Access terminal: Phoenix terminal

consumption

Empty: 1W@24VDC (Non PoE)

Full load: 3W@24VDC (Non PoE)

work environment

Working temperature: -40 ℃~75 ℃

Storage temperature: -40 ℃~85 ℃

Relative humidity: 5%~95% (without condensation)

mechanical structure

Housing: IP40 protection level, aluminum alloy housing

Installation: DIN rail mounted

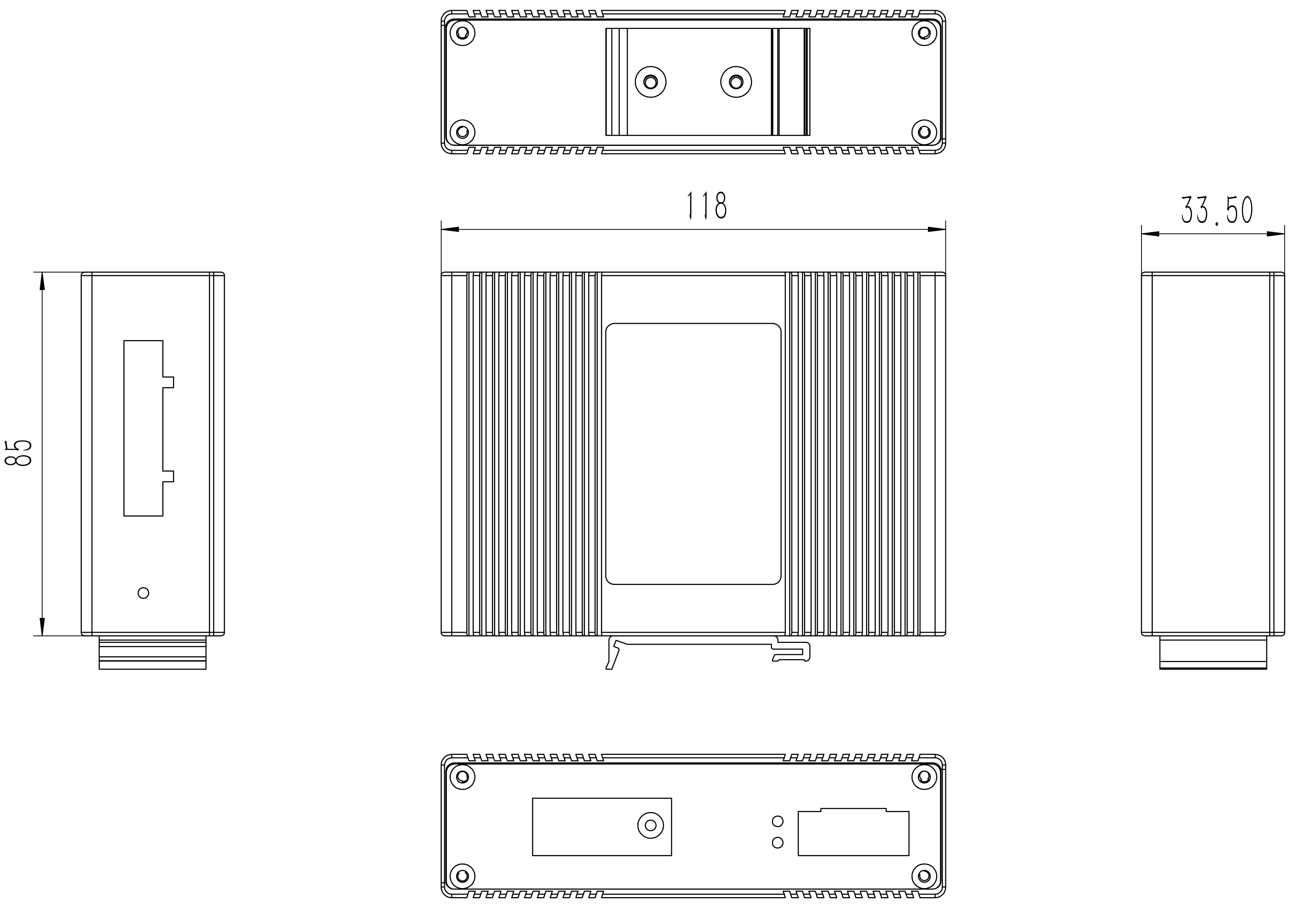

Size: (length × wide × Height) 118x86x39mm

Product weight: 0.36Kg

Industry standards

IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4

Air discharge: ± 15kV

● Contact discharge: ± 8kV

IEC 61000-4-5 (Surge, Surge Immunity), Level 4

Power supply: common mode ± 4kV, differential mode ± 2kV

Ethernet interface: ± 4kV

Impact: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

authenticationCE, FCC, RoHS, ISO9001, Ministry of Public Security testing
warranty  5 years
