Model:ZT-IE6050-2GP1GS

Two 10/100/1000Base-TX~1x000Base-FX unmanaged industrial grade Gigabit Ethernet switches

Two gigabit PoE ports and one gigabit FX optical port industrial Ethernet switch, supporting two 10/100/1000Base-T (X) PoE ports and one 1000Base-T (X) port. The product complies with FCC, CE, and RoHS standards. ZT-IE6050-1GP1GS has a working temperature of -40 ℃ to 75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level shell and LED indicator light make the ZT-IE6050-2GP1GS a plug and play industrial grade device, using high-quality and high-speed network ICs and the most stable PoE chips. The PoE port meets the 802.3af or 802.3at standards, providing reliable and convenient solutions for users' Ethernet device networking, and can be widely used in comprehensive energy, smart transportation, and smart factories, Industrial scenarios with Ethernet access such as smart cities and smart mines.

ZT-IE6050-2GP1GS(图1)

Adopting high-quality optoelectronic integrated modules to provide good optical and electrical characteristics
Ensure reliable data transmission and long working life
Supports full duplex or half duplex modes with automatic negotiation capability
The network interface supports fully automatic cross recognition
Built in storage and forwarding mechanism, supporting multiple protocols
Green and energy-saving, using low-power CPU
Working power supply: DC 12V-52V provides reverse protection and 4A overcurrent protection
SC/FC/ST/LC/optional
Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ s)
Meets industrial level operational standards, with an average time between failures of over 300000 hours

Standards and Protocols	IEEE802.3-10Base-T IEEE802.3u-100Base-Tx IEEE802.3ab-1000Base-T(x) IEEE802.3x - Flow Control IEEE 802.3af/at
Interface	Electrical port: 2x10/100/1000Base-T (X), RJ45, automatic detection Optical port: 1x1000Base-F (X), SC/FC/ST optional Full/half duplex mode, MDI/MDI-X adaptive
LED indicator light	Power indicator light: PWR
Exchange Properties	Transmission method: storage and forwarding Backplane bandwidth: 6G MAC address: 8K Application level: Level 2 Power consumption:<3W Exchange latency:<3us Cache: 1Kbit
PoE Parameters	PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive PoE port output voltage: DC 48-57V PoE power supply core: 1/2+; 3/6-
Power supply	Input voltage: DC12-52V Supports dual power redundancy Supports reverse protection Access terminal: Phoenix terminal
Consumption	Empty: 1W@24VDC (Non PoE) the full load: 3W@24VDC (Non PoE)
Work environment	Working temperature: -40 ℃~75 ℃ Storage temperature: -40 ℃~85 ℃ Relative humidity: 5%~95% (without condensation)

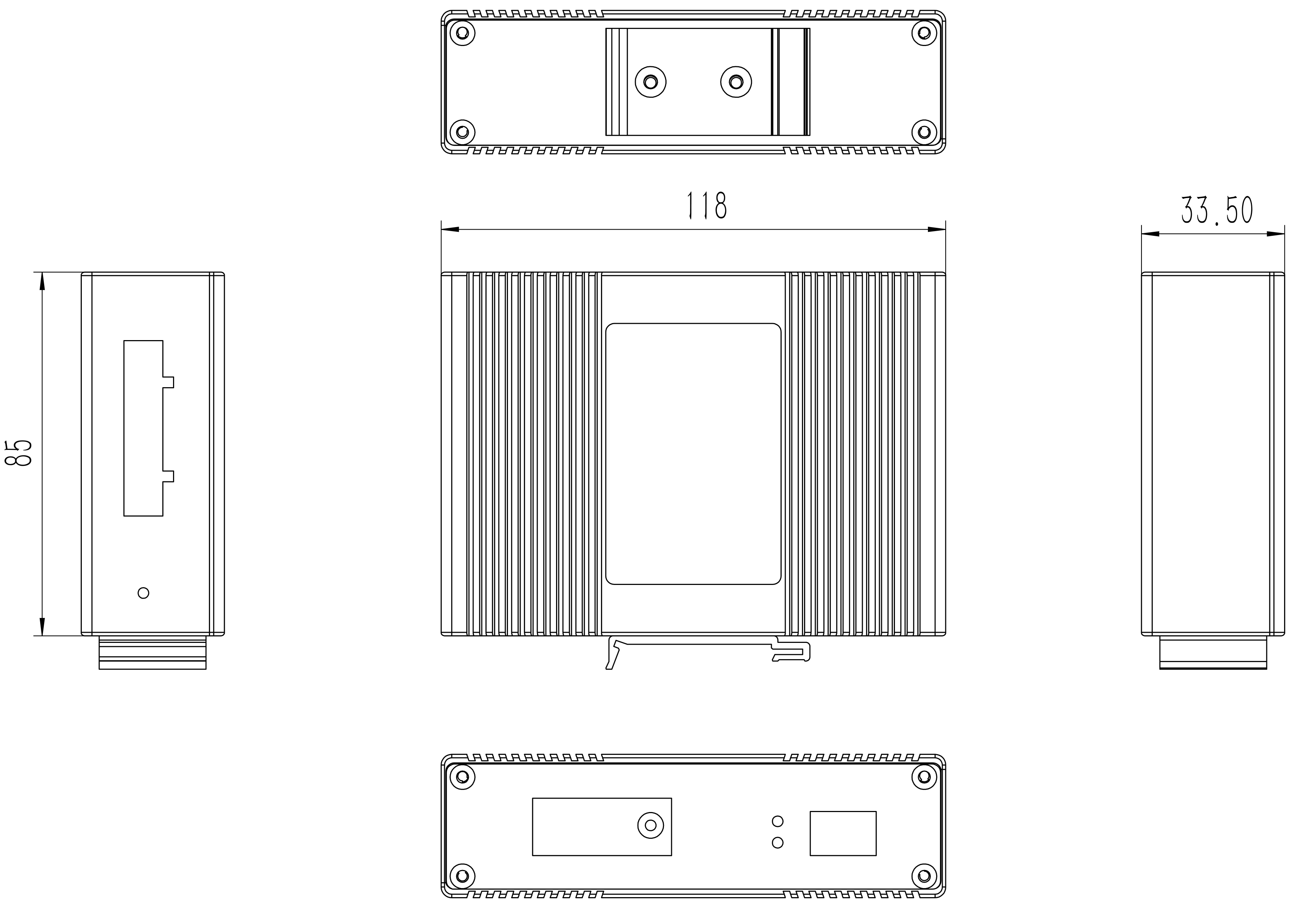

Mechanical structure	Housing: IP40 protection level, aluminum alloy housing Installation: DIN rail mounted Size: (length × wide × Height) 118x86x39mm Product weight: 0.36Kg
Industry standards	IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4 ●Air discharge: ± 15kV ● Contact discharge: ± 8kV IEC 61000-4-5 (Surge, Surge Immunity), Level 4 ●Power supply: common mode ± 4kV, differential mode ± 2kV ●Ethernet interface: ± 4kV Impact: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE、FCC、RoHS、ISO9001、Detected by the Ministry of Public Security
Warranty	5 Years
