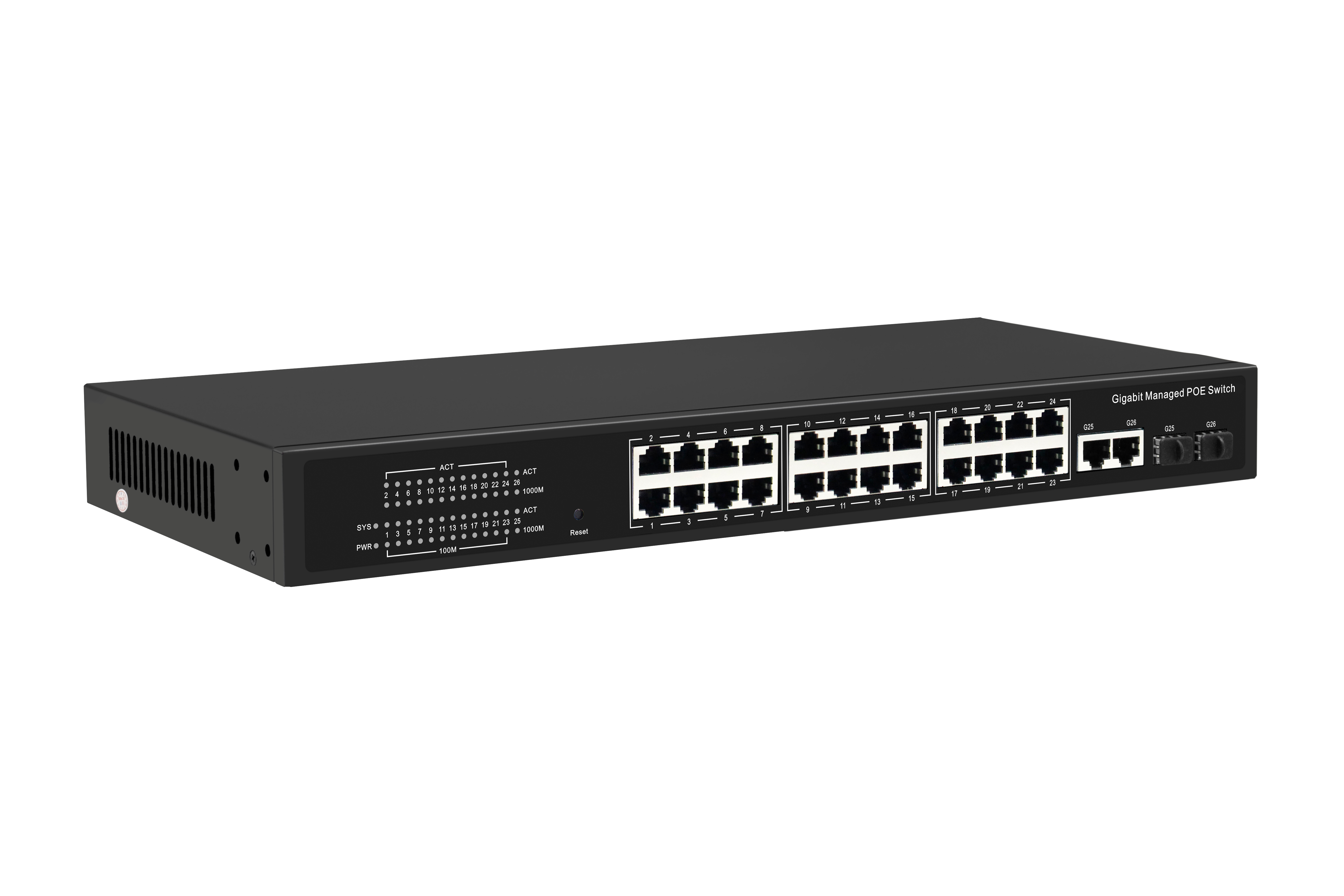

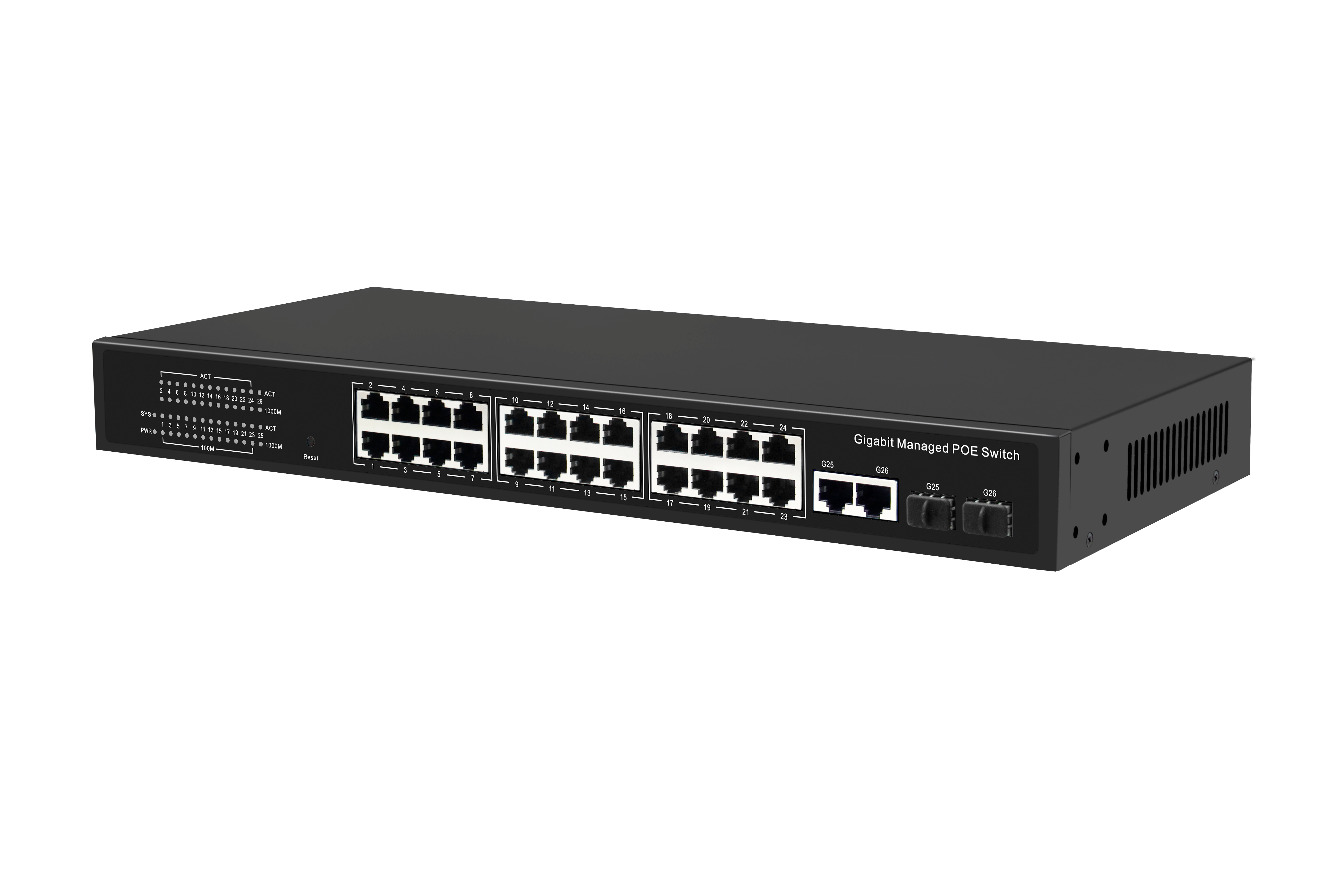

24 100Mbps POE ports, 2 gigabit network ports, and 2 gigabit SFPs (optoelectronic multiplexing), with L2 visual management based on WEB browser, can achieve performance monitoring, port configuration, port aggregation, VLAN and QOS priority for switches. You can choose to use SNMP based software to manage your smart switch. Plug and play, POE management can set port power size, delay, automatic power refresh, automatic restart, and other functions.

POE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.

With simple and convenient installation and maintenance methods and rich business features, it helps users create a safe and reliable high-performance network. Mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, schools, etc.

General
product name	28 port 100 Gigabit managed POE switch
Model	ZT-IE6250S-24TPC2GT2GS-300
Port Definition	24 100 Gigabit POE ports+2 Gigabit Ethernet ports+2 Gigabit SFPs (optical multiplexing)
network protocol	IEEE 802.3
	IEEE 802.3u
	IEEE 802.3ab
	IIEEE 802.3x
	IEEE 802.1q
	IEEE 802.1p，QoS
	IGMP Snooping
POE parameters	PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive POE port output voltage: DC48-55V POE power supply core: 1/2+; 3/6-





Network transmission medium	10BASE-T: Cat3、4、5UTP(≤100 M) 100BASE-TX: Cat5 UTP(≤100 M) 1000BASE-TX: Cat5 UTP(≤100 M)


Fiber optic indicators	Multimode fiber: 850nm, 1310nm Transmission distance: 550m/2Km Single mode fiber: 1310nm, 1550nm Transmission distance: 20/40/60/80/100/120Km

LED indication	PWR	Always on: The device is powered on
		Not on: The device is not powered on
	SYS	Flashing: The system is operating normally
		Not lit: The system is not running
	Link	Always on: The link is normal
		Not lit: Link not working
	Act	Always on: No data transmission
		Flashing: Data transmission
		Not lit: Link not working

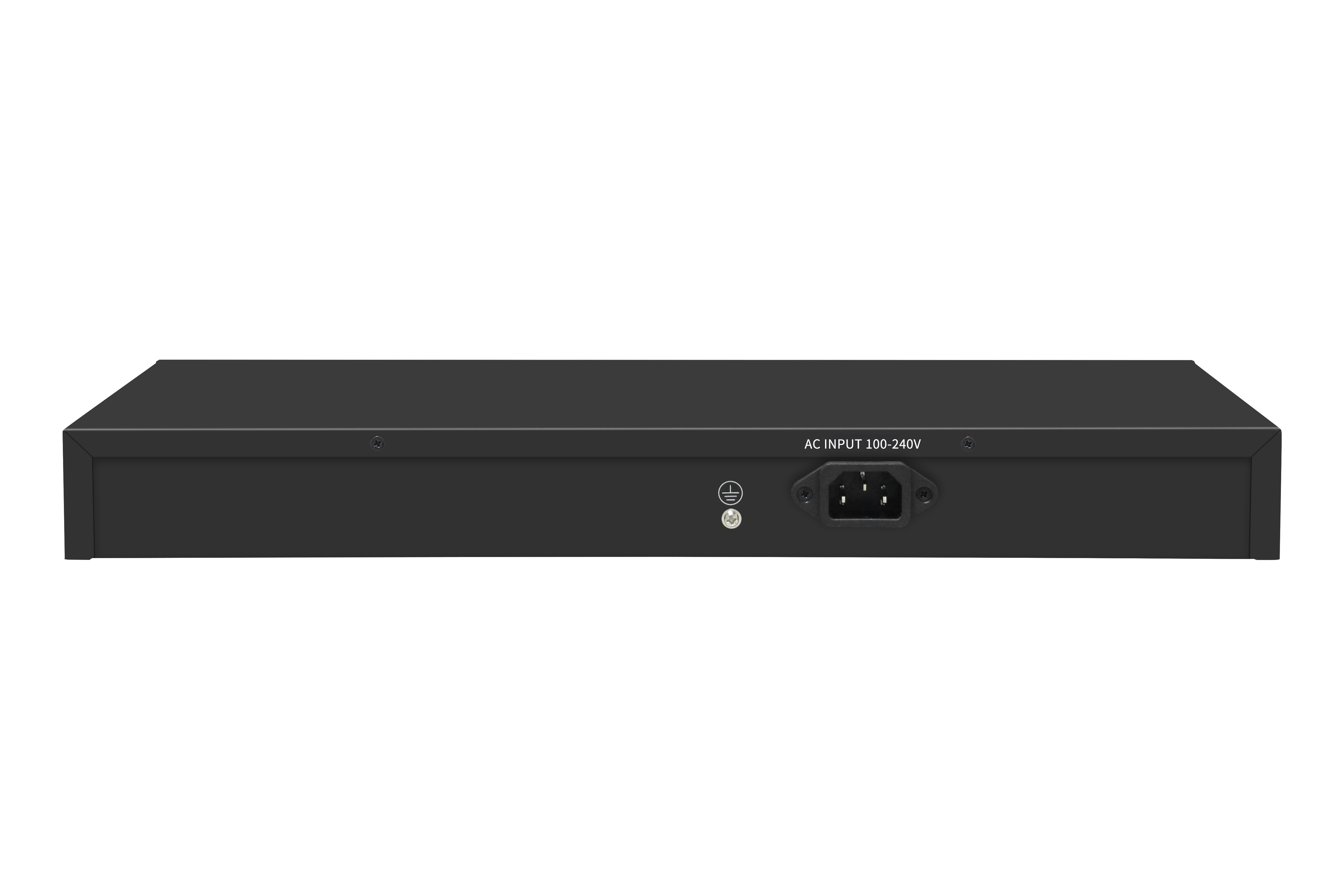

power supply	Machine input voltage: AC100-240V; Output: 52V5.76A Total power: 300W
Dimension	Product size (L × W × H) : 410mm × 185mm × 44.5mm
	Packaging size (L × W × H) : 468mm × 274mm × 81mm
	Product weight: 2.2kg
	Packaging weight: 2.8kg
work environment	Working temperature: -20~50 ° C Storage temperature: -40~85 ° C Working humidity: maximum relative humidity of 90%, non condensing Storage humidity: maximum relative humidity of 95%, non condensing Working height: maximum 10000 feet (3000 meters) Storage height: up to 10000 feet (3000 meters)





authentication	CE、FCC、ROHS、CCC
mean time between failures	100,000 hour
packing list	1. Switch: 1 set 2. Instructions: 1PCS 3. Certificate of conformity and warranty card: 1PCS 4. Power cord: 1 piece 5. Hanging ears: 1 pair




warranty	2 years
TECHNICAL INDEX
backplane bandwidth	864Gbps
packet forwarding rate	6.547Mpps
Package cache	4M
Memory capacity	32MB
Flash memory capacity	16MB
MAC address table	16K
VLANs	4096
jumbo frame	1.6Kbytes
Layer 2 software functions
Port Management	Enable/disable ports Speed, duplex, MTU settings Flow control settings Port information viewing



line rate	Supports port access direction and VLAN mirroring
line rate	Supports port speed limit, with speed limit granularity determined by the chip
port isolate	Supports port isolation settings
Storm suppression	Supports unknown unicast, unknown multicast, and broadcast storm suppression
Link Aggregation	Support static manual aggregation
VLAN	Access
	Trunk
	Supports VLAN partitioning based on ports and protocols
	Support GVRP dynamic VLAN registration
	Voice VLAN
MAC	Support for static addition and deletion
	MAC address learning quantity limit
	Support dynamic aging time setting
spanning tree	802.1D Standard Spanning Tree (STP)
	802.1w Fast Spanning Tree (RSTP)
	802.1s Multi Spanning Tree (MSTP)
IGMP-snooping	Support for static addition and deletion
Extended functionality
ACL	Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number
	Supports time range time period management
QOS	Classification based on 802.1p (COS) Based on DSCP classification Classification based on source IP, destination IP, and port number Support SP, WRR, DRR scheduling strategies Support for traffic speed limit CAR




LLDP	Supports LLDP link discovery protocol
User settings	Add/Remove Users
log	User login, operation, status, and event logging
Anti attack	ARP binding (IP, MAC, PORT binding)
network diagnostics	Supports ping, telnet, and trace
system management	Device reset, configuration save/restore, upgrade management, time setting, etc
management function
TELNET	Support telnet remote management
WEB	WEB management page
SNMP	SNMP V1/V2/V3
POE	Support POE power supply management

Model:ZT-IE6250S-24TPC2GT2GS-300
