ZT-IE6250S-16GPC2GT2GS_Shenzhen Weixun Zetong Technology Co., Ltd

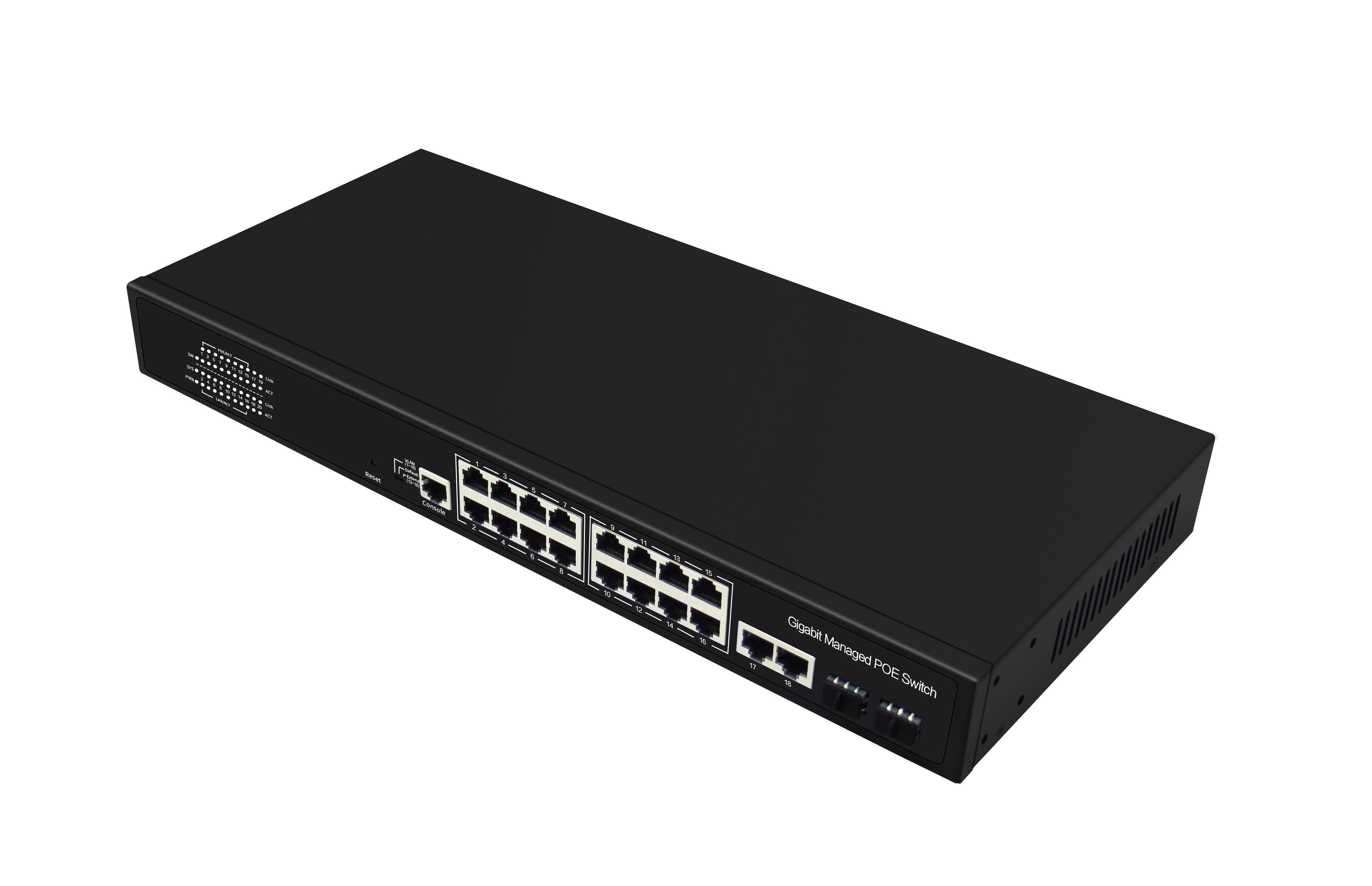

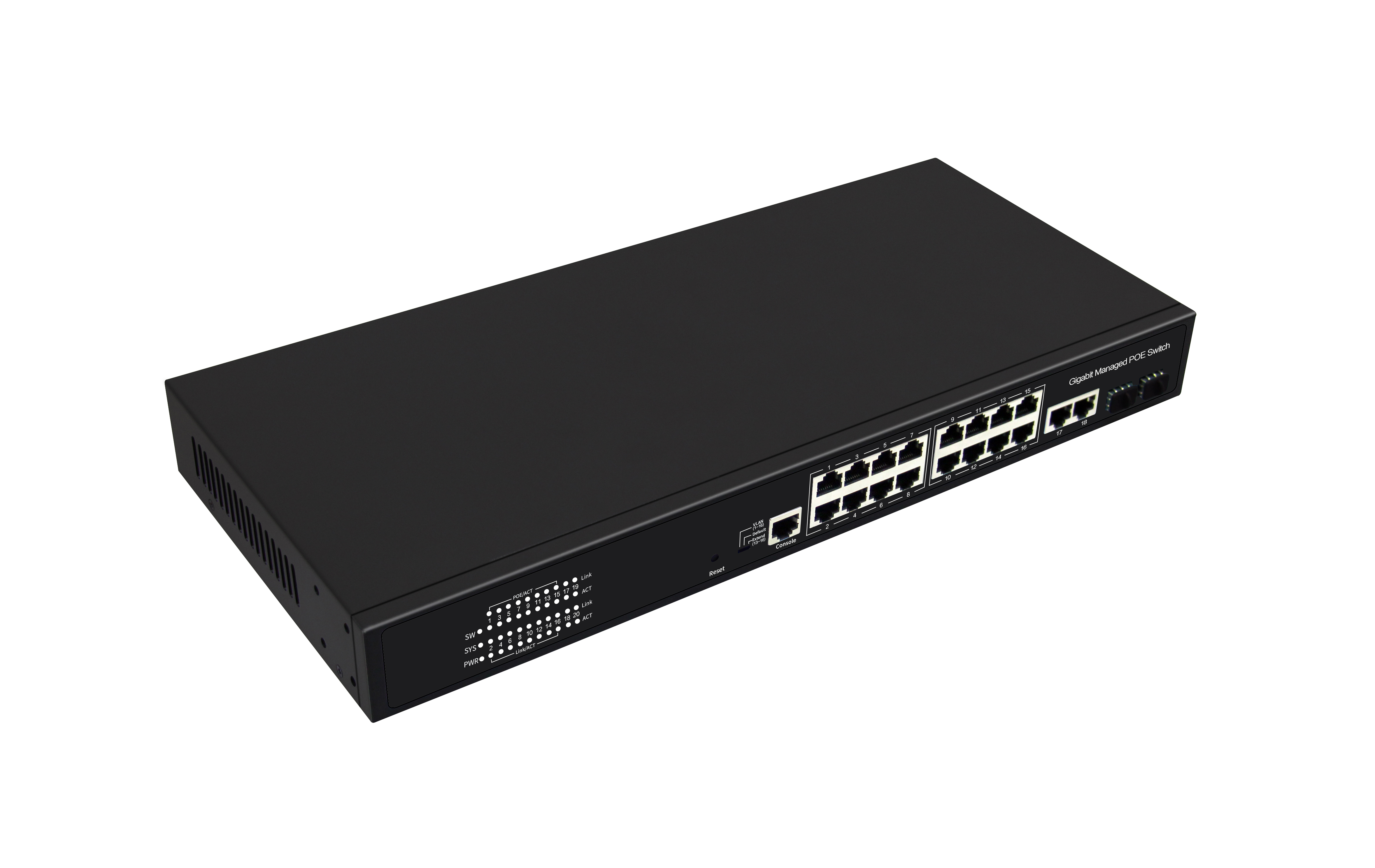

20 port Gigabit managed PoE switch, using high-quality and high-speed network IC and the most stable PoE chip. The PoE port meets the IEEE802.3af/at standard. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to the standard receiving devices. Non PoE devices do not provide power for intelligent detection and only transmit data.

PoE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.

General performance indicators
product name	10-port Gigabit managed PoE switch
Model	ZT-IE6250S-8GP2GS
Port Definition	8 Gigabit PoE network ports+2 Gigabit SFP ports+1 management port
network protocol	IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z




PoE parameters	PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive PoE port output voltage: DC48-55V PoE power supply core: 1/2+; 3/6-





Network transmission medium	10BASE-T: Cat3, 4, and 5 UTP (≤ 100 meters) 100BASE-TX: Cat5 or above UTP (≤ 100 meters) 1000BASE-TX: Cat5 or above UTP (≤ 100 meters)


Fiber optic indicators	Multimode fiber: 850nm, 1310nm Transmission distance: 550m/2Km Single mode fiber: 1310nm, 1550nm Transmission distance: 20/40/60/80/100/120Km

Dialing Code Definition	VLAN: 1-8 ports are isolated from each other and only interconnected with uplink ports 9 and 10 Default: 1-10 port standard switching, all ports communicate freely Extend: 7-8 ports support 250 meter link extension, with a speed of 10M


Reset	Short press to restart, long press for 5 seconds to restore factory settings
LED indicator light	POWER	Always on: The device is powered on
		Not on: The device is not powered on
		Always on: VLAN
	SW	Not lit: Default
		Blinking: Extend
	SYS	Blinking: System startup in progress
		Long light: The system is running normally
	9-10	Always on: Link connection is normal
		Flash: Fiber optic data transmission is normal
		Not lit: Fiber optic link not working
	PoE/ACT	Always on: PoE power supply is normal
	1-8	Not on: PoE not powered
	link/ACT	Always on: Link connection is normal
	1-8	Blinking: data transmission
		Not lit: Link not working
power supply	Input voltage: DC 48-52V Adapter: 52V2.3A Total power: 120W
Dimension	Product size (L × W × H) : 200mm * 120mm * 45mm Packaging size (L × W × H) : 303mm * 190mm * 60mm Product weight: 0.7kg Packaging weight: 1.2kg



work environment	Working temperature: -20~50 ° C Storage temperature: -40~85 ° C Working humidity: maximum relative humidity of 90%, non condensing Storage humidity: maximum relative humidity of 95%, non condensing Working height: maximum 10000 feet (3000 meters) Storage height: up to 10000 feet (3000 meters)





authentication	CE、FCC、CCC、RoHS
mean time between failures	100,000 小时
mean time between failures	1. Switch: 1 set 2. Instructions: 1PCS 3. Certificate of conformity and warranty card: 1PCS 4. Power cord: 1 piece 5. 52V power adapter: 1PCS 6. Serial port cable: 1 piece 7. User manual CD: 1 piece 8. Hanging ears: 1 pair (optional)







Hardware parameters
exchange capacity	192Gbps
packet forwarding rate	14.88Mpps
Package cache	4M
Memory capacity	128MB
Flash memory capacity	16MB
MAC address table	8K
VLAN	4096
Giant Zhen	9.6Kbytes
Forwarding mode	store and forward
Layer 2 software functions
Port Management	Enable/disable ports Speed, duplex, MTU settings Flow control settings Port information viewing



Port Mirror	Supports port and aggregation group entry and exit directions
port isolate	Supports port speed limit, with a speed limit granularity of 32Kbps
port isolate	Supports port isolation settings
Storm suppression	Supports unknown unicast, unknown multicast, and broadcast storm suppression
Link Aggregation	Support static manual aggregation Support LACP dynamic aggregation

VLAN	Access
	Trunk
	hybrid
	Support VLAN partitioning based on port, protocol, and MAC, VLAN tunnel
	Voice VLAN
MAC	Support for static addition and deletion MAC address learning quantity limit Support dynamic aging time setting


spanning tree	802.1D Standard Spanning Tree (STP) 802.1w Fast Spanning Tree (RSTP) 802.1s Multi Spanning Tree (MSTP)


Multicast	Support for static addition and deletion IGMP snooping Support for MLD Snooping Supports v1/2/3 dynamic multicast listening



DDM	Supports SFP/SFP+DDM
Extended functionality
ACL	Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number
QOS	Classification based on 802.1p (COS) Based on DSCP classification Classification based on source IP, destination IP, and port number Support SP and WRR scheduling strategies Support for traffic speed limit CAR




LLDP	Supports LLDP link discovery protocol
User settings	Add/Remove Users
log	User login, operation, status, and event logging
Anti attack	DOS Defense Support CPU protection and limit the rate of sending CPU packets ARP binding (IP, MAC, PORT binding)


authentication	Supports 802.1x port authentication Supports AAA certification

network diagnostics	Supports ping, telnet, and trace
system management	Device reset, configuration save/restore, upgrade management, time setting, etc
management function
CLI	Support for serial command line management
CLI	Support for serial command line management
SSH	Support for SSH v1/2 remote management
TELNET	Support telnet remote management
WEB	Support for second tier settings, second and third tier viewing
SNMP	SNMP V1/V2/V3
	Support traps: cold start, warm start, link close, link open
RMON	Supports RMON v1
Other functions	Supports PoE configuration, PoE scheduling management, PoE watchdog, and PoE port timed restart Supports DHCP Snooping, Option82 Supports dynamic ARP detection Support TACACS+authentication Support DNS settings Support port security settings Support for MVR protocol Supports cable detection VCT function Supports UDLD protocol

Model:ZT-IE6250S-16GPC2GT2GS
